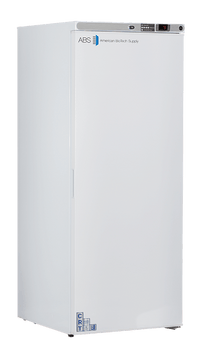

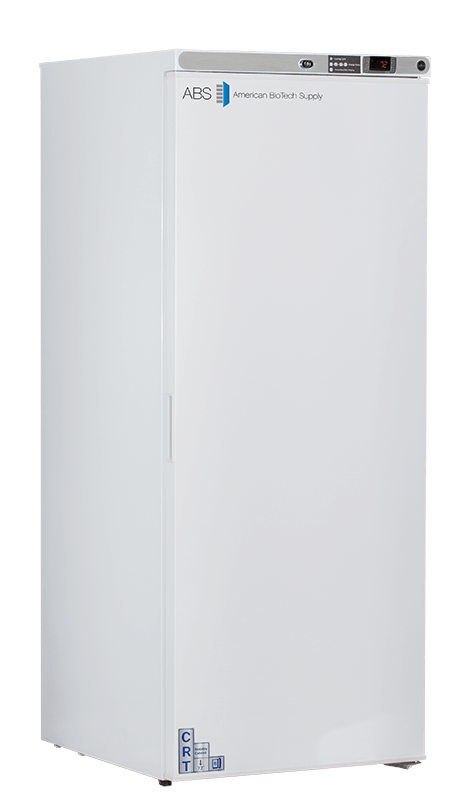

American Biotech Supply - CRT-ABT-HC-10PS - 10.5 Cu. Ft. Upright Controlled Room Temperature Cabinet, Solid Door

Features
A controlled temperature environment will ensure approved storage; preventing time wasted on unnecessary expense and product recalls.
Freestanding models require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Six adjustable shelves with guard rail on back to prevent product from being pushed against back wall
- Bottom footed shelf to allow air circulation
- Back wall evaporator cover
- Vaccine storage power cord warning label
- Forced draft circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- LED interior light
- HFC-free refrigerant (R600a), foam insulation and packaging
- Vaccine toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
- Note: This unit must have 4" clearance on sides and back for adequate ventilation
Temp Controller

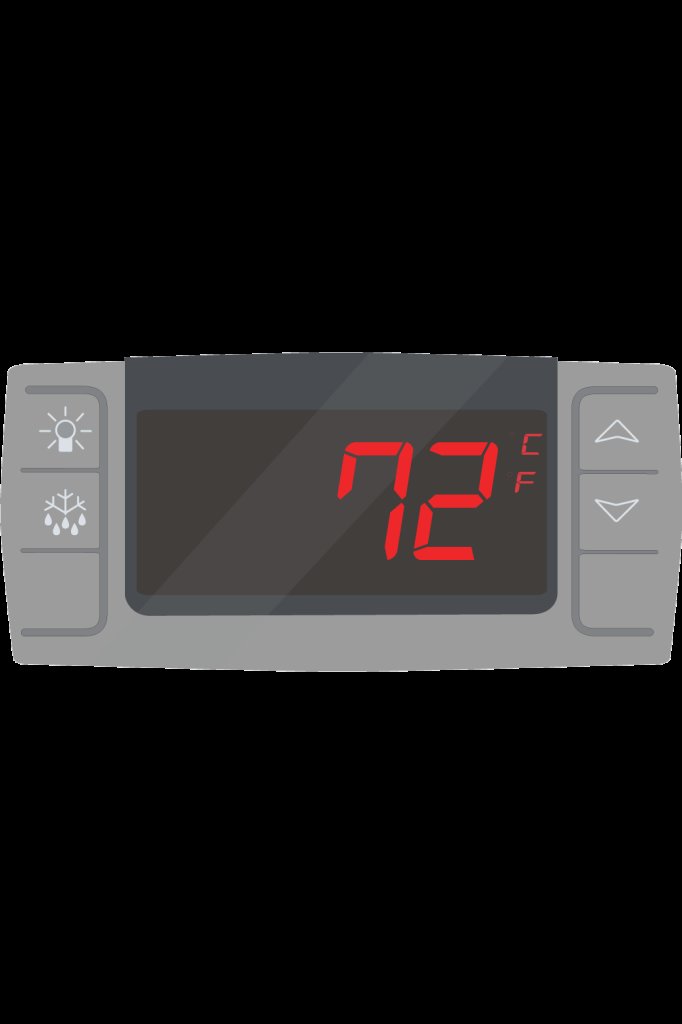

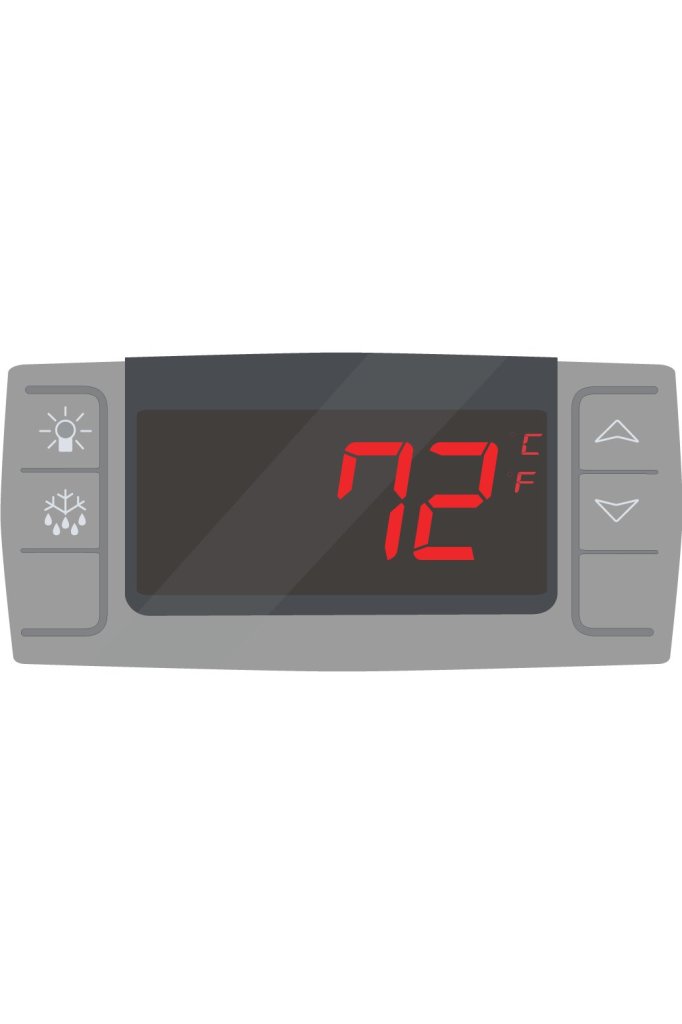

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- 2 probes; 1 in air and 1 in sample bottle
- Remote alarm contacts
- Adjustable operating temperature range: 68°F to 77°F (20°C to 25°C)
- Calibrated using a NIST traceable device, certificate included
Specifications
Overview
-
Nominal Height:59" (149.86 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:26.5" (67.31 cm)
-
Internal Height:53.5" (135.89 cm)
-
Internal Width:19.88" (50.5 cm)
-
Internal Length:18.38" (46.69 cm)
-
Capacity:10.5
Technical Data
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:6 Adj + Footed Bottom
-
Refrigerant:R600a
-
H.P.:0.33
-
Amps:2.3
-
Weight:148 lbs.
-
Shipping Weight:183 lbs.
Drawings
-
CRT-ABT-HC-10PS Ext CutsheetVisit Link
-
CRT-ABT-HC-10PS Int CutsheetVisit Link
Useful Links
-
CRT-ABT-HC-10PS SpecSheetVisit Link
-
ABS Natural Refrigerants FlyerVisit Link
-
Accessories 10.5 BasketVisit Link
-
Accessories 10.5 Bottom BasketVisit Link
