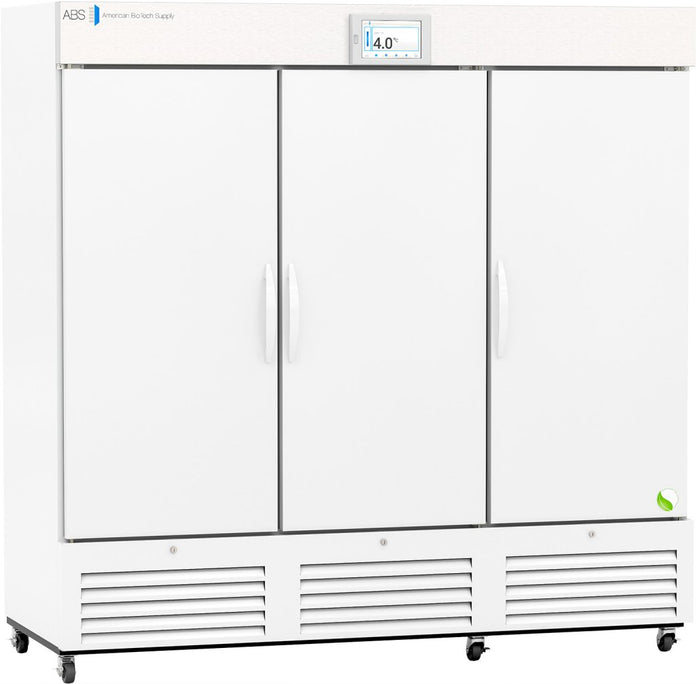

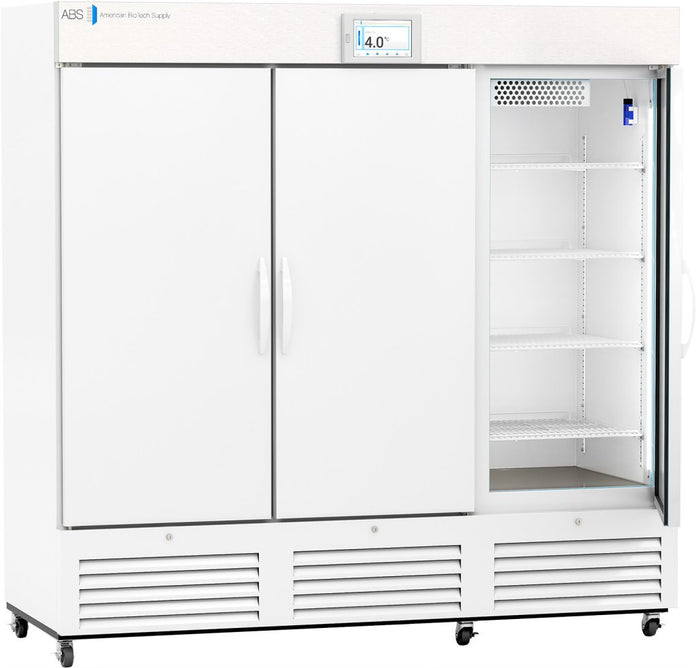

American Biotech Supply - ABT-VS-72S-TS - 72 Cu. Ft. Touchscreen Solid Door Laboratory Refrigerator with Variable Speed Compressor

American Biotech Supply - ABT-VS-72S-TS - 72 Cu. Ft. Touchscreen Solid Door Laboratory Refrigerator with Variable Speed Compressor
American Biotech Supply - ABT-VS-72S-TS - 72 Cu. Ft. Touchscreen Solid Door Laboratory Refrigerator with Variable Speed Compressor

American Biotech Supply - ABT-VS-72S-TS - 72 Cu. Ft. Touchscreen Solid Door Laboratory Refrigerator with Variable Speed Compressor

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
These premium touchscreen refrigerators offer precise temperature control and advanced digital monitoring, ideal for clinical and research settings.

Features

They feature variable speed compressor technology for exceptional performance and energy efficiency. Experience an intuitive color touchscreen controller, offering multi-layered access and data logging capabilities. Protect your samples with forced draft air circulation and customizable alarms with remote contacts. Also enjoy the benefit of natural, hydrocarbon refrigerants for energy savings and a greener laboratory footprint. This refrigerator is constructed with durable powder-coated steel, a self-closing solid door, a keyed access lock, LED interior lighting, and adjustable interior shelving. Also included is a comprehensive 3-year parts and labor warranty with a generous 7-year compressor warranty to protect your investment. With these refrigerators, you’ll increase performance and maximize efficiency in your lab.

Specifications

Overview

  • Nominal Height:
    81.75" (207.65 cm)
  • Nominal Width:
    81" (205.74 cm)
  • Nominal Length:
    34.75" (88.27 cm)
  • Internal Height:
    48.75" (123.83 cm)
  • Internal Width:
    76.25" (193.68 cm)
  • Internal Length:
    25" (63.5 cm)
  • Capacity:
    72

General Description and Application

  • Door:
    Three (3) swing solid doors, self-closing, two right hinged, one left hinged, magnetic door gasket
  • Shelves:
    Twelve (12) adjustable shelves (adjustable in 1/2" increments)
  • Mounting and Installation:
    Swivel casters - locking front casters
  • Interior Lighting:
    Led interior lights are safety shielded and switch controlled
  • Airflow Management:
    Forced draft air circulation, patented air flow technology
  • External Probe Access:
    3/4" probe access port on rear wall
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high-density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Three (3) year parts and labor warranty
  • Compressor Warranty:
    Seven (7) year compressor warranty
  • Product Weight (lbs):
    600
  • Shipping Weight (lbs):
    705
  • Rated Amperage:
    3 amps
  • Power Plug/Power Cord:
    NEMA 5-15P plug
  • Facility Electrical Requirement:
    110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
  • Agency Listing and Certification:
    ETL, C-ETL listed certified to UL471 standard. Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators

Performance

  • Maximum Temperature Variation (Cabinet Air):
    +/- 1°C
  • Stability (Simulator Ballast):
    +/- 0.3°C
  • Adjustable Temperature Range:
    2°C to 15°C
  • Energy Consumption (KWh/day):
    <3.1 KWh/day *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
  • Average Heat Rejection (BTU/hr):
    <800 BTU/h
  • Noise Pressure Level (dBA):
    40 dBA or less installed
  • Pull Down Time to Nominal Operating Temp:
    < 60 min (empty)
  • Performance Note:
    Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings.

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
  • Condenser:
    Tube and grid, high efficiency fan forced air
  • Evaporator:
    Fin and tube, high efficiency fan forced air
  • Defrost:
    Cycle defrost
