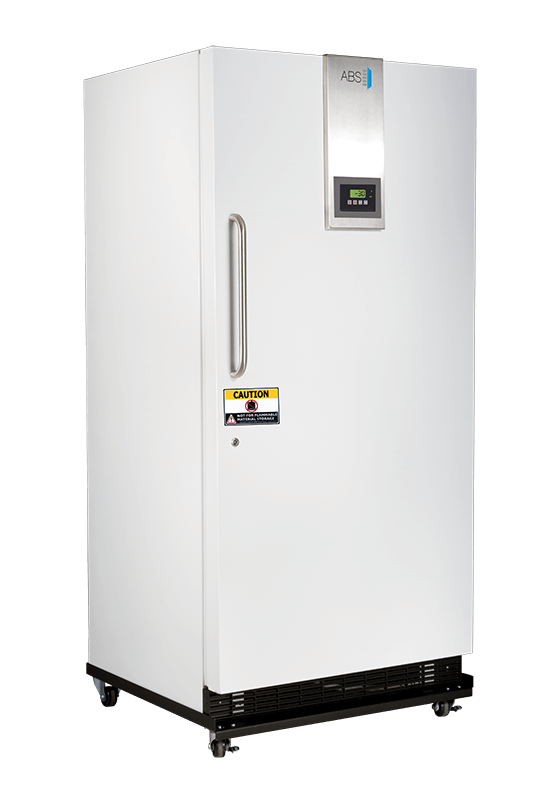

American Biotech Supply (ABS) - ABT-MFP-3030 - 30 Cu. Ft. Manual Defrost Laboratory Freezer, -30C

Features
Manual defrost units also feature insulating inner doors and a manual defrost operating system to limit product-damaging temperature spikes.
In addition to the elimination of damaging auto defrost cycles, the inner doors help reduce cold air loss during main door openings and greatly improve temperature recovery.
Details
- Five Inner “fast-freeze compartments” with doors for temperature maintenance and recovery
- Four fixed shelves
- Keyed door lock
- Magnetic door gasket for positive seal
- Stainless steel door handle
- Caster platform (adds 4″ to height)
- CFC-free refrigerant (R404a), foam insulation and packaging
- Two year parts and labor warranty; plus additional three year compressor parts warranty
Temp Controller
- Microprocessor Temperature Controller
- Adjustable operating temperature range: -27°C to -33°C
- Standard Digital Temperature Display and Alarm Module with battery back-up to support temperature monitoring and alarms
- Sample simulated digital temperature display; .1° Resolution
- Adjustable temperature display in Celsius or Fahrenheit
- Audible and visual high/low temperature alarms
- Sensor error alarm
- Power failure alarm
- Resettable 1-point Min/Max History
- Remote alarm contacts
- Alarm validation (audible, visual, and remote alarm)
- Alarm mute with ring back
Specifications
Overview
-
Nominal Height:76.5" (194.31 cm)
-
Nominal Width:35.75" (90.81 cm)
-
Nominal Length:34.25" (87.0 cm)
-
Internal Height:64.5" (163.83 cm)
-
Internal Width:32" (81.28 cm)
-
Internal Length:22" (55.88 cm)
-
Capacity:30
Technical Data
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:5
-
Shelves:4 Fixed
-
Refrigerant:R404a
-
H.P.:1/3
-
Amps:6
-
Weight:402 lbs.
-
Shipping Weight:462 lbs.
Drawings
-
ABT-MFP-3030 Ext Cut SheetVisit Link
-
ABT-MFP-3030 Int Cut SheetVisit Link
