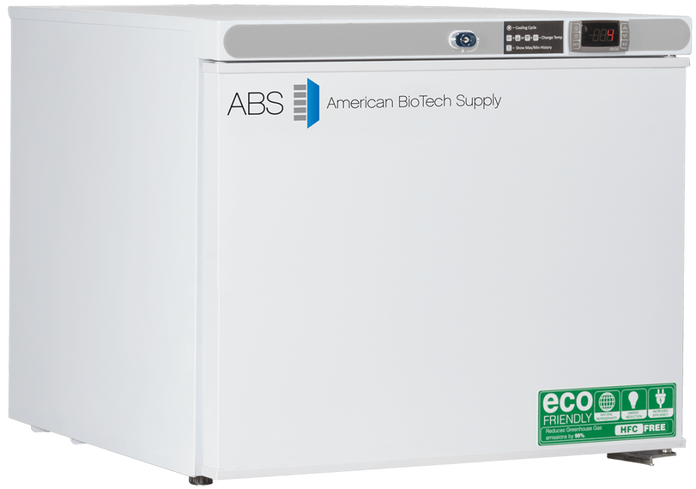

American Biotech Supply - ABT-HC-UCFS-0120A - 1.3 Cu. Ft. Capacity Premier Countertop Auto Defrost Laboratory Freezer Freestanding

Features
DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.
The Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Energy Star Certified.
Details

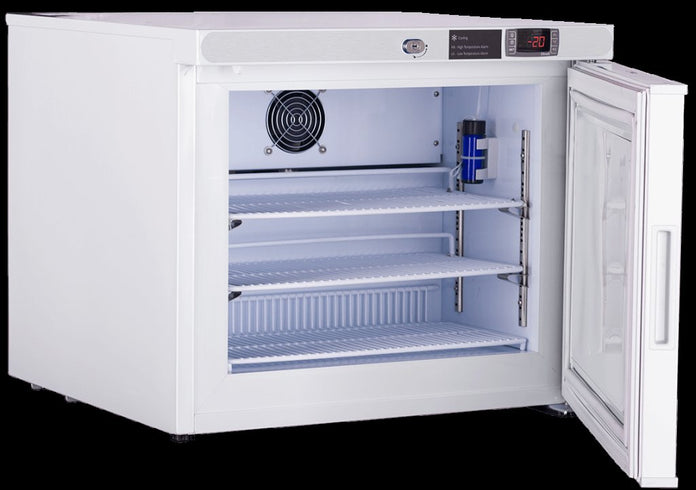

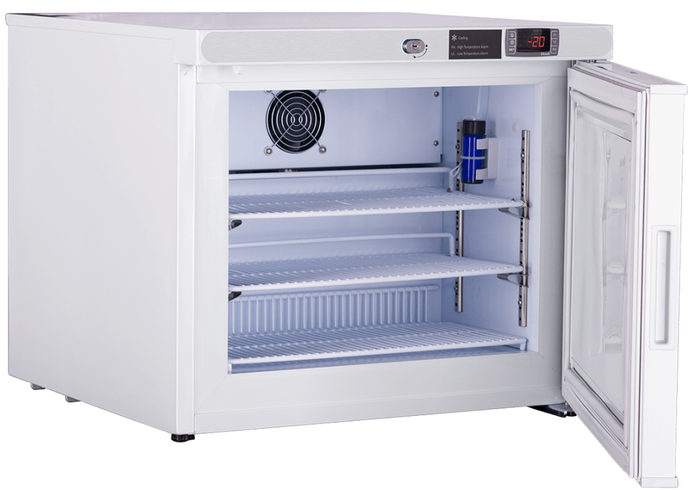

- 2 adjustable shelves with guard rail to prevent product from being pushed against back wall
- Bottom footed shelf to allow air circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
- Note: This unit must have 4" clearance on sides and back for adequate ventilation
Temp Controller

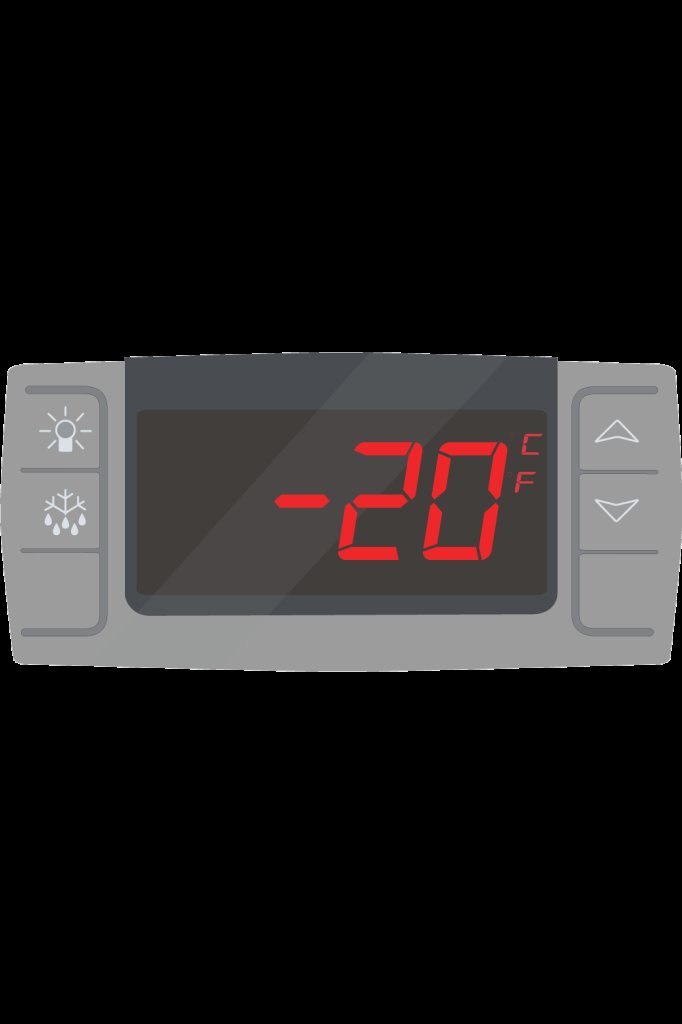

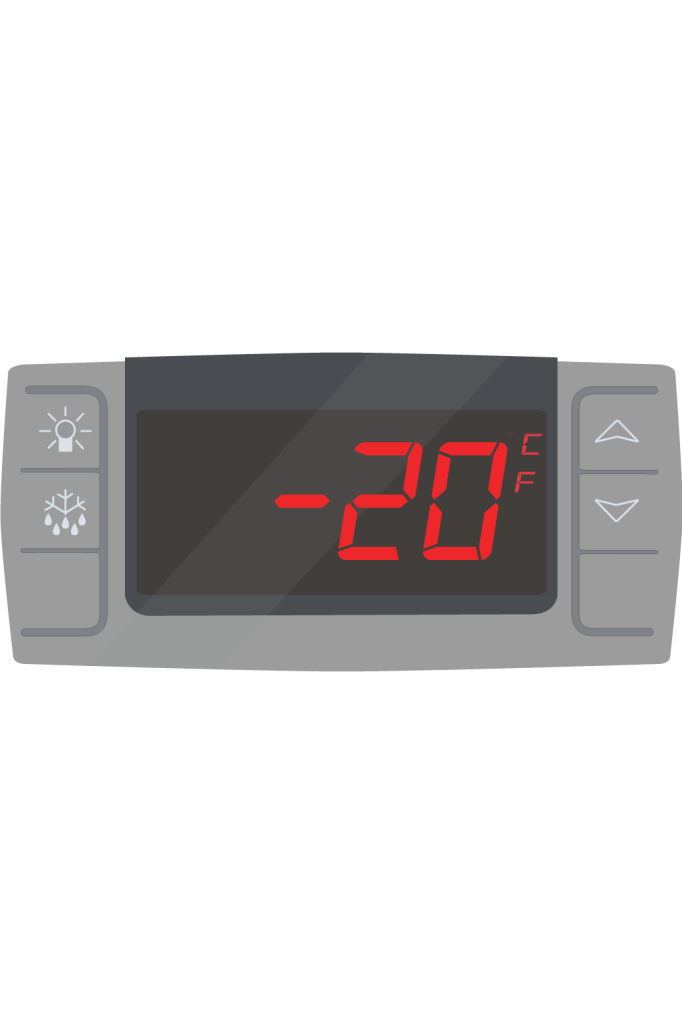

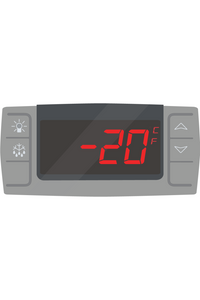

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- 2 probes, 1 in air and 1 in sample bottle
- Remote alarm contacts
- Adjustable operating temperature range: -15°C to -25°C
Specifications
Overview
-
Nominal Height:20.38" (51.77 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24" (60.96 cm)
-
Internal Height:13.88" (35.26 cm)
-
Internal Width:18" (45.72 cm)
-
Internal Length:9.13" (23.19 cm)
-
Capacity:1.3
Technical Data
-
Defrost:Auto
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Adj + Footed Bottom
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1
-
Weight:80 lbs.
-
Shipping Weight:106 lbs.
Drawings
-
ABT-HC-UCFS-0120A Ext Cut SheetVisit Link
-
ABT-HC-UCFS-0120A Int Cut SheetVisit Link
Useful Links
-
ABT-HC-UCFS-0120A Spec SheetVisit Link
-
ABS Natural Refrigerants FlyerVisit Link
