Engineered for demanding laboratory environments, the ABT-HC-PLF-49 features a sophisticated Proportional Integral Derivative (PID) microprocessor controller with LCD display that maintains precise temperature control from -35°C to -15°C. The comprehensive alarm system includes visual and audible indicators for power failure, temperature sensor failure, high/low temperature, and door ajar conditions, with alarm logging capability. A 24V high-capacity battery backup keeps data logging active during power interruptions, providing continuous monitoring for your critical samples.

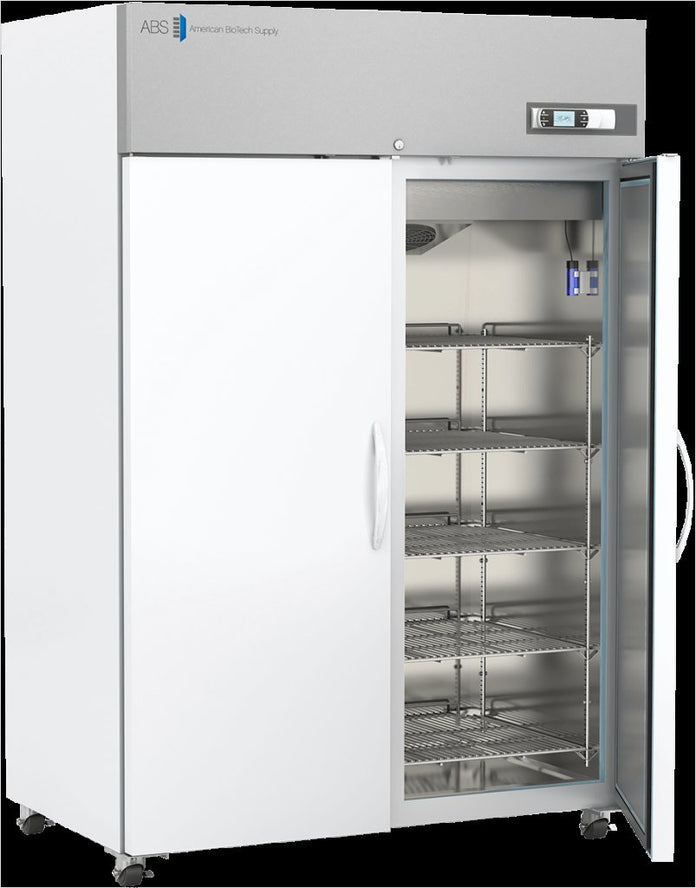

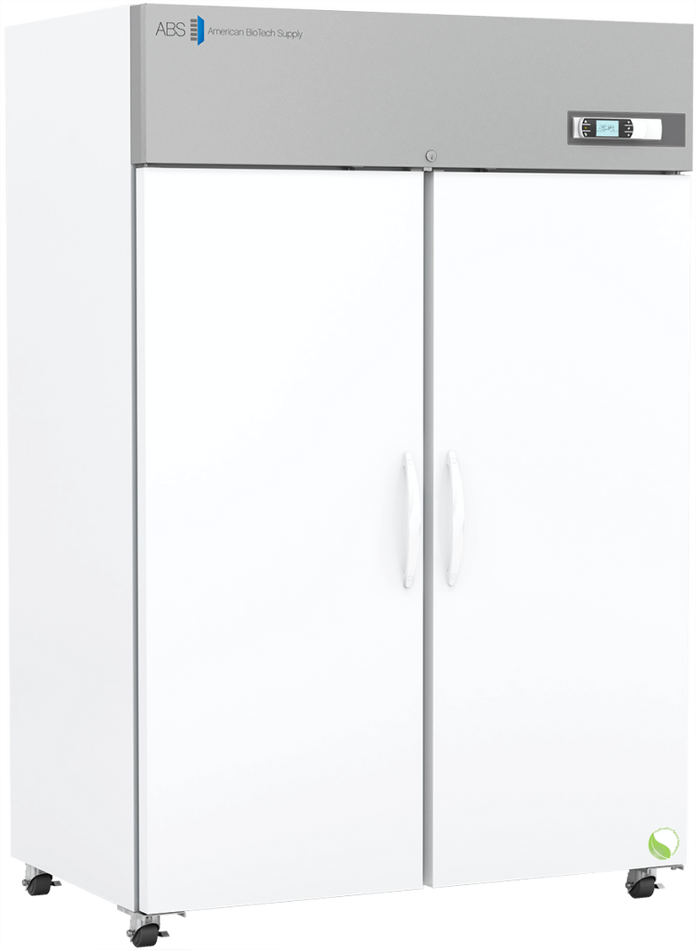

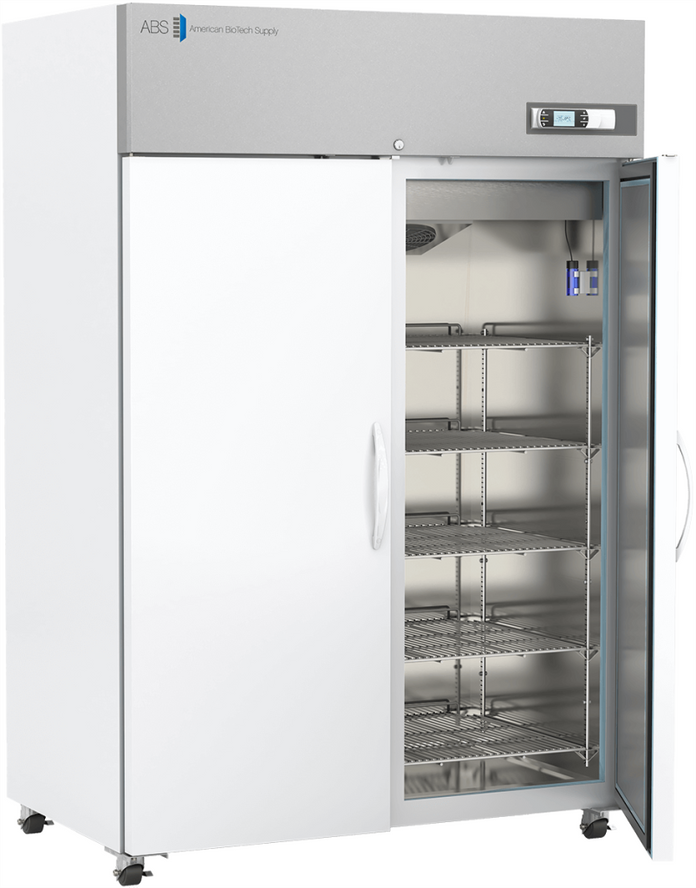

The ABT-HC-PLF-49 combines robust construction with thoughtful design features, including ten adjustable shelves with guard rails, double swing solid doors (right and left hinged), and full-coverage shielded LED interior lighting. The cabinet utilizes EPA-compliant high-density urethane foam insulation within a white powder-coated steel exterior, mounted on four preinstalled swivel casters with front locking capability. With an industry-leading seven-year compressor warranty and two-year parts and labor warranty, this premium freezer delivers the reliability and peace of mind your laboratory demands.

Key Features
Variable speed compressor technology for optimized cooling
Ultra-quiet operation at 43 dBA or less
Temperature uniformity of ±0.7°C and stability of ±1.8°C across cabinet
Energy-efficient 8.57 kWh/day consumption with 1710 BTU/hr heat rejection
Seven-year compressor warranty with two-year parts and labor coverage

Benefits
Reduce laboratory noise pollution while maintaining superior cooling performance
Lower operating costs through intelligent energy consumption that self-adjusts to demand
Protect samples with precise temperature control and comprehensive alarm systems
Ensure data integrity with battery backup monitoring during power failures
Meet compliance requirements with ETL/C-ETL certification to UL471 standards

Temp Controller

• Controller technology: Proportional Integral Derivative (PID) microprocessor with LCD display
• Battery Backup: 24V high-capacity battery, controller, all alarms active, temperature monitoring DAQ and event logging active on battery backup
• Display technology: Non-applicable
• Digital Communication: RS-485 (MODBUS)
• Data Transfer: USB port for data transfer and software updates
• Chart Recorder: Non-applicable
• Adjustable Temperature Range: -35°C to -15°C
• External alarm connection: State switching remote alarm contacts
• Alarms: Alarm logging (last 100 entries) with Visual and audible indicators: Power failure, Temperature sensor failure, Battery voltage monitor and replacement, High / Low temperature, Door ajar.
• Controller probe: Bottle with glass bead thermal media
