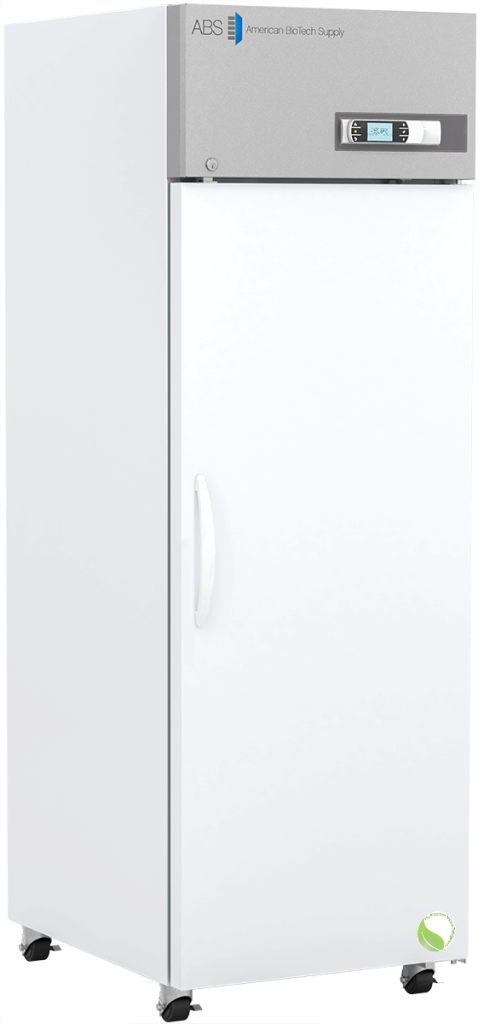

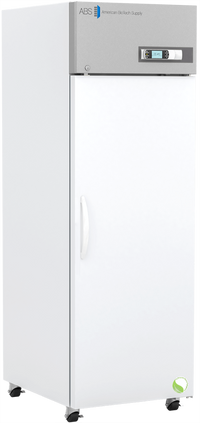

The ABT-HC-PLF-23 Premium Laboratory Freezer delivers superior cooling performance through advanced variable speed compressor (VSC) technology. This 23 cubic foot unit provides ultra-quiet operation while achieving exceptional temperature uniformity of ±0.7°C and stability of ±1.8°C across the cabinet. With energy consumption of just 8.57 kWh per day, the system optimizes power usage by self-adjusting compressor speeds based on cooling demands.

Engineered for demanding laboratory environments, the ABT-HC-PLF-23 features microprocessor-controlled temperature management with a full array of protective alarms including power failure, sensor failure, and high/low temperature alerts. The unit maintains precise control across an adjustable range of -35°C to -15°C, with rapid pull-down to operating temperature. A 24V high-capacity battery backup ensures continuous monitoring and data logging even during power interruptions.

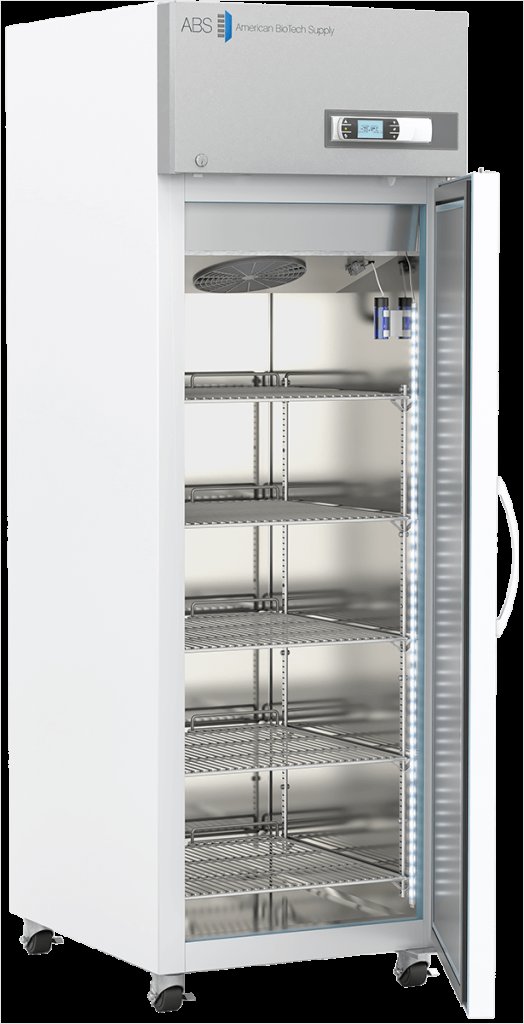

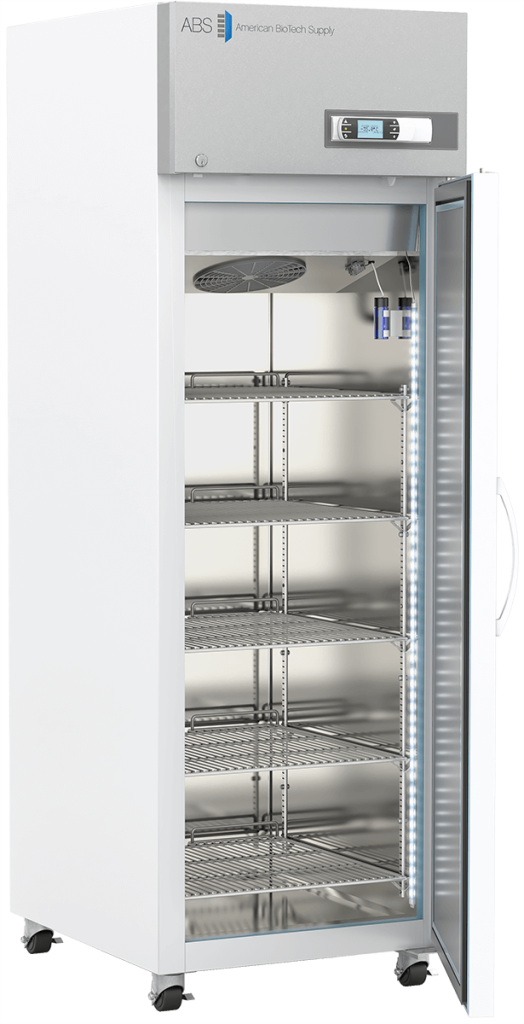

Built for reliability and longevity, the ABT-HC-PLF-23 is backed by a two-year parts and labor warranty and a seven-year compressor warranty. With high-density urethane foam insulation and durable white powder-coated steel construction. Five adjustable shelves with rear guard rails maximize the 23 cubic foot storage capacity, while full-coverage LED lighting provides excellent visibility. The unit arrives ready to install on four preinstalled swivel casters with front locking capability, requiring only a standard 110-120V AC connection.

Key Features
Variable speed compressor technology for optimized cooling
Ultra-quiet operation at 43 dBA or less
Temperature uniformity of ±0.7°C and stability of ±1.8°C across cabinet
Energy-efficient 8.57 kWh/day consumption with 1710 BTU/hr heat rejection
Seven-year compressor warranty with two-year parts and labor coverage

Benefits
Reduce laboratory noise pollution while maintaining superior cooling performance
Lower operating costs through intelligent energy consumption that self-adjusts to demand
Protect samples with precise temperature control and comprehensive alarm systems
Ensure data integrity with battery backup monitoring during power failures
Meet compliance requirements with ETL/C-ETL certification to UL471 standards

Temp Controller

• Controller technology: Proportional Integral Derivative (PID) microprocessor with LCD display
• Battery Backup: 24V high-capacity battery, controller, all alarms active, temperature monitoring DAQ and event logging active on battery backup
• Display technology: Non-applicable
• Digital Communication: RS-485 (MODBUS)
• Data Transfer: USB port for data transfer and software updates
• Chart Recorder: Non-applicable
• Adjustable Temperature Range: -35°C to -15°C
• External alarm connection: State switching remote alarm contacts
• Alarms: Alarm logging (last 100 entries) with Visual and audible indicators: Power failure, Temperature sensor failure, Battery voltage monitor and replacement, High / Low temperature, Door ajar.
• Controller probe: Bottle with glass bead thermal media
