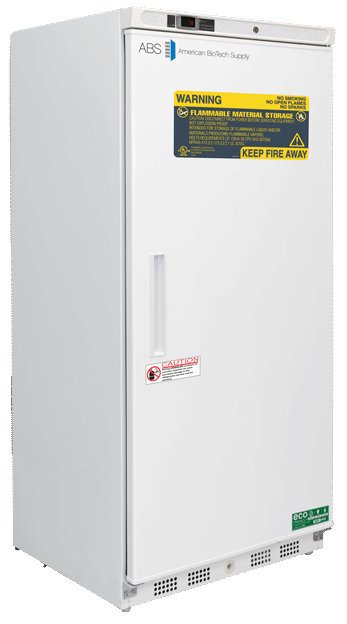

American Biotech Supply - ABT-HC-FRP-17 - 17 Cu. Ft. Standard Flammable Storage Refrigerator with Natural Refrigerants

American Biotech Supply - ABT-HC-FRP-17 - 17 Cu. Ft. Standard Flammable Storage Refrigerator with Natural Refrigerants
American Biotech Supply - ABT-HC-FRP-17 - 17 Cu. Ft. Standard Flammable Storage Refrigerator with Natural Refrigerants

American Biotech Supply - ABT-HC-FRP-17 - 17 Cu. Ft. Standard Flammable Storage Refrigerator with Natural Refrigerants

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

Flammable storage freezers meet the requirements of NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations. Utilizes non-sparking and/or ATEX rated components to ensure an intrinsically safe interior for flammable materials in sealed containers. These units feature temperature alarms, keyed door locks, interior shelving, probe access, and microprocessor temperature control.



Features

Models utilize environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details

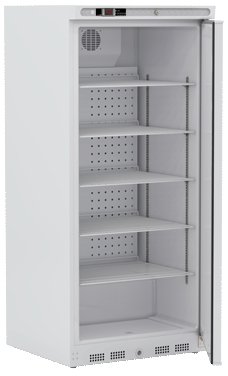

  • One solid swing door, right hinged, not reversible
  • 5 adjustable shelves
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Leveling legs
  • One probe access port (3/4″)
  • White textured cabinet and door
  • High density urethane foam cabinet and door insulation
  • Natural, Hydrocarbon Refrigerant (R600a)
  • Utilizes ATEX and non-sparking components for safety
  • Two year parts and labor warranty



Temp Controller

  • Microprocessor Temperature Controller
  • Adjustable operating temperature range: 1°-10°C
  • Standard Digital Temperature Display
  • Sample simulated digital temperature display; .1° Resolution
  • Audible and visual high/low temperature alarms
  • Remote alarm contacts

Specifications

Overview

  • Nominal Height:
    67.75" (172.09 cm)
  • Nominal Width:
    30.75" (78.11 cm)
  • Nominal Length:
    28.63" (72.72 cm)
  • Internal Height:
    58.5" (148.59 cm)
  • Internal Width:
    26.25" (66.68 cm)
  • Internal Length:
    20.88" (53.04 cm)
  • Capacity:
    17

General Description and Application

  • Door:
    Right Hinged
  • Shelves:
    5 adjustable shelves
  • Freezer Compartments:
    Non-applicable
  • Baskets:
    Non-applicable
  • Mounting:
    Leveling Legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Forced draft air circulation
  • External Probe Access:
    Rear wall port (3/4") dia.
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Warranty Disclaimer:
    Products require 4" of clearance around back and sides of the unit for proper ventilation - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
  • Shipping Weight (lbs):
    250
  • Rated Amperage:
    2.5 Amps
  • Power Plug/Power Cord:
    NEMA 5-15 Plug, conforms to UL471 requirements
  • Facility Electrical Requirement:
    115V, 60 Hz
  • Agency Listing and Certification:
    ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety, Energy Star Certified

Refrigeration System

  • Refrigerant:
    R600a
  • Defrost:
    Cycle

Controller, Configuration, Alarms and Monitoring

  • Controller Technology:
    Microprocessor temperature controller with digital temperature display, °C/°F switchable
  • Display Technology :
    Standard Digital Temperature Display
  • Adjustable Temperature Range:
    Adjustable Temperature Range
  • External Alarm Connection:
    State switching remote alarm contacts
  • Alarms:
    2 Probes, 1 in air and 1 in sample bottle
  • Disclaimers:
    These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist; Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
