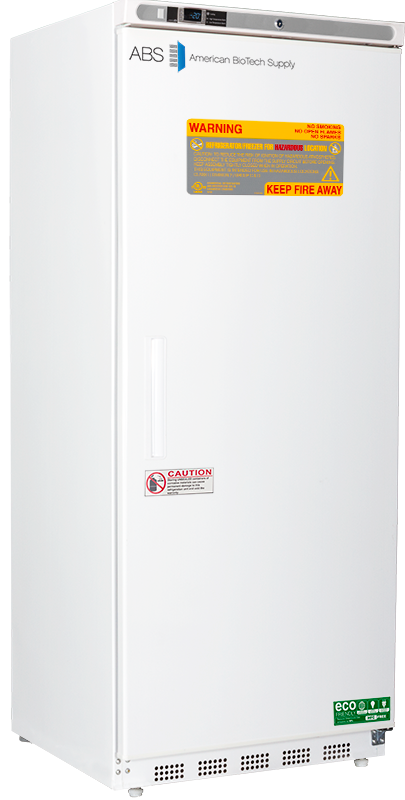

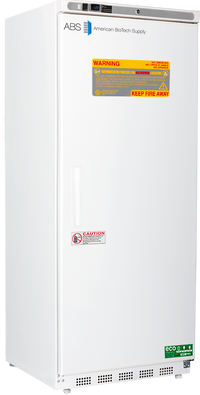

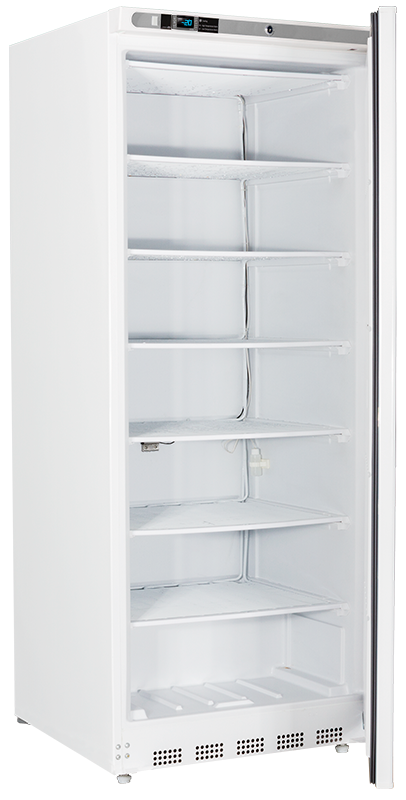

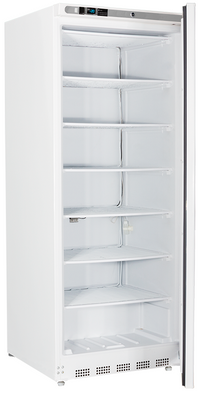

American Biotech Supply - ABT-HC-EFP-20 - 20 Cu. Ft. Standard Hazardous Location Freezer

American Biotech Supply - ABT-HC-EFP-20 - 20 Cu. Ft. Standard Hazardous Location Freezer
American Biotech Supply - ABT-HC-EFP-20 - 20 Cu. Ft. Standard Hazardous Location Freezer

American Biotech Supply - ABT-HC-EFP-20 - 20 Cu. Ft. Standard Hazardous Location Freezer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

Our Hazardous Location Freezers meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B, C & D guidelines. These units are engineered for use in environments where volatile / explosive conditions could potentially exist.  For storage of flammable or volatile materials within typical laboratory or non-volatile environments, see Flammable Material Storage units.

Features

Utilizes ATEX and non-sparking components for safety. Models feature a microprocessor temperature controller, allowing for precise temperature control, recovery and maintenance versus mechanical style thermostats.



Models utilize environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Please Note: Not equipped with plug; must be hardwired in conduit.



Details



  • One solid swing door, right hinged, not reversible
  • Six fixed shelves
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Leveling legs
  • White textured cabinet and door
  • High density urethane foam cabinet and door insulation
  • Hydrocarbon, natural refrigerant (R290)
  • Two year parts and labor warranty
  • Utilizes ATEX and non-sparking components for safety
  • Meet NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Groups A,B,C & D.



Temp Controller



  • Microprocessor Temperature Controller
  • Adjustable operating temperature range:-15°C to -25°C



Specifications

Overview

  • Nominal Height:
    74.63" (189.56 cm)
  • Nominal Width:
    30.75" (78.11 cm)
  • Nominal Length:
    29" (73.66 cm)
  • Internal Width:
    25.88" (65.74 cm)
  • Internal Length:
    21.75" (55.25 cm)
  • Capacity:
    20

General Description and Application

  • Door:
    Right Hinged
  • Shelves:
    6 Fixed
  • Freezer Compartments:
    Non-applicable
  • Baskets:
    Non-applicable
  • Mounting:
    Leveling Legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Non-applicable
  • External Probe Access:
    Non-applicable
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Warranty Disclaimer:
    Products require 4" of clearance around back and sides of the unit for proper ventilation - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
  • Shipping Weight (lbs):
    250
  • Rated Amperage:
    5.5 Amps
  • Power Plug/Power Cord:
    Power cord is not included - final power connections at site must be hardwired to meet local codes
  • Facility Electrical Requirement:
    115V, 60 Hz
  • Agency Listing And Certification:
    ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety, Energy Star Certified. Units meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B,C & D guidelines.

Refrigeration System

  • Refrigerant:
    R290
  • Defrost:
    Manual

Controller, Configuration, Alarms and Monitoring

  • Controller Technology:
    Microprocessor temperature controller with digital temperature display, °C/°F switchable
  • Display Technology:
    Standard Digital Temperature Display
  • Adjustable Temperature Range:
    -15°C to -25°C
  • External Alarm Connection:
    State switching remote alarm contacts
  • Alarms:
    Audible and visual high and low temperature alarms
  • Disclaimers:
    Power cord is not included-final power connections at site must be hardwired to meet local codes; Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH; Defrosting of the unit will need to be performed periodically to prevent severe ice build-up
