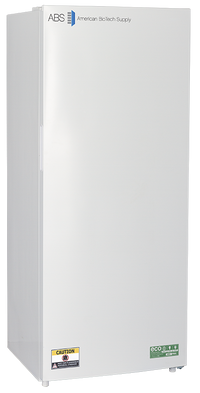

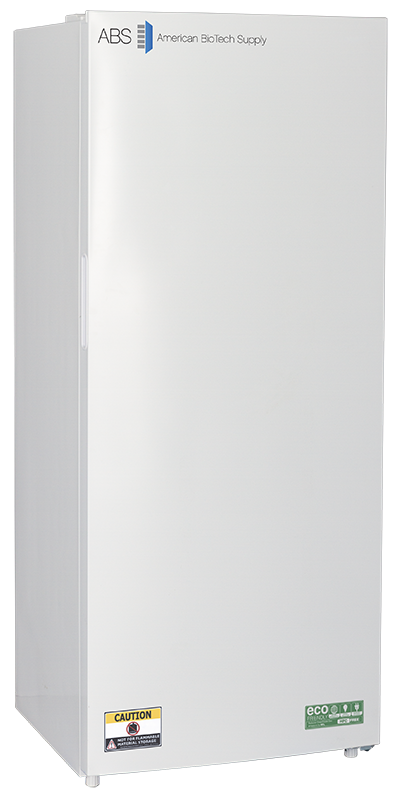

American Biotech Supply - ABT-HC-AFS-1420 - 14 Cu. Ft. General Purpose Auto Defrost Hydrocarbon Laboratory Freezer

Features
The Auto-Defrost design provides the convenience of a frost-free interior. However, chamber air temperatures do experience a moderate rise during defrost cycles.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
DISCLAIMER: Auto-defrost freezers incorporate an electric heater installed on the evaporator to assist in the removal of frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.
Details

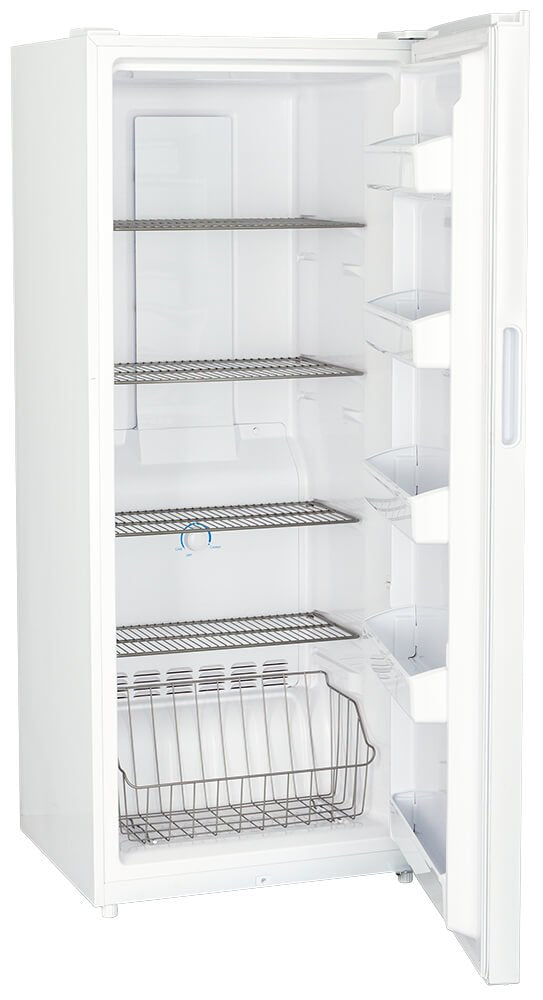

- Four adjustable shelves + 1 wire basket
- Magnetic door gasket for positive seal
- Heavy-duty door handle
- Leveling legs
- Interior light
- Probe access port (0.4")
- White textured cabinet and door
- High-density urethane foam cabinet and door insulation
- HFC-free refrigerant (R600a), foam insulation and packaging
- One-year parts and labor warranty, plus an additional four-year compressor parts warranty
Temp Control
- Mechanical thermostat
- Adjustable operating temperature range: -15°C to -20°C
Specifications
Overview
-
Nominal Height:67.75" (172.09 cm)
-
Nominal Width:28" (71.12 cm)
-
Nominal Length:26.25" (66.68 cm)
-
Internal Height:59.75" (151.77 cm)
-
Internal Width:21.38" (54.31 cm)
-
Internal Length:14.25" (36.2 cm)
-
Capacity:14
Technical Data
-
Defrost:Auto
-
Door:1 Solid
-
Int Door:0
-
Shelves:4 Adj + Basket
-
Refrigerant:R600a
-
H.P.:1/4
-
Amps:5
-
Weight:180 lbs.
-
Shipping Weight:220 lbs.
Drawings
-
ABT-HC-AFS-1420 Ext Cut SheetVisit Link
-
ABT-HC-AFS-1420 Int Cut SheetVisit Link
Useful Links
-
ABT-HC-AFS-1420 Spec SheetVisit Link
