Amerex - HG-50 - Hirayama HG-Series Autoclaves with an Innovative Feature
Features
The HG-Series include 4 models with innovative features and functions.

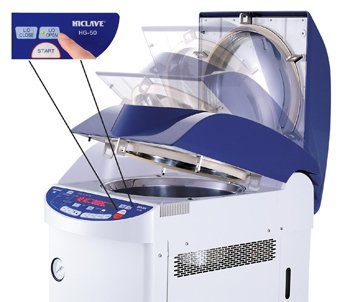

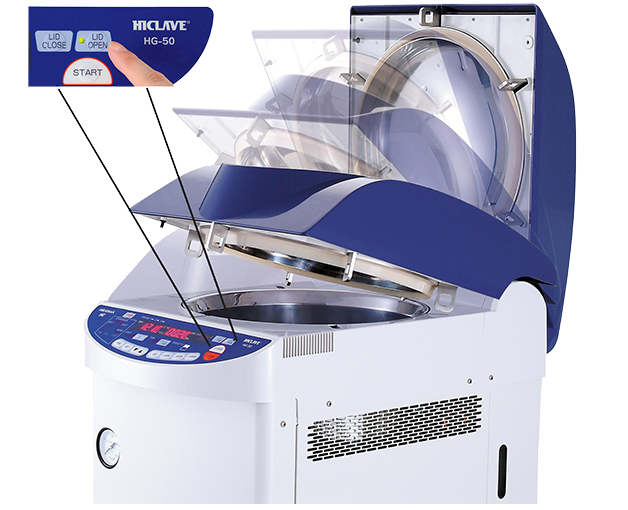

- Automatic Lid Opening Button replaces a foot pedal.
- Automatic Lid Closing Button closes lid conveniently and safely.
- Safety Interlock senses pressure and temperature and prevents lid from opening during a cycle, when the chamber is pressurized, and when the high temperature can cause boil over.
- Programmable Auto-Start for running a cycle from 1 to 99 hours later.
- Large (15 liters) / Efficient Steam Condenser ensures no steam exhausts into the lab. The HG-113 and HG-133 incorporate a radiator for this.
- Over-Flow Lamp indicates that the drain bottle is full and ready to be emptied.
- Built-in Cooling Fan for faster post-sterilization cooling and shorter completion time.
- Selectable Rate of steam venting after sterilization.
- Programmable Time for air removal before sterilization.
- Twelve Programs Cycles can be stored.

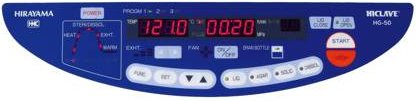

- Large Control and Display Panel improves functionality and shows the progress of the sterilization cycle.
Specifications
Overview
-
Nominal Height:35" (88.9 cm)
-
Nominal Width:19.7" (50.04 cm)
-
Nominal Length:27.2" (69.09 cm)
-
Capacity:50
Technical Data
-
Temperature Range:105°C to 135°C
-
Sterilization Timer:1 to 300 minutes
-
Media Warming/Holding Temperature:Programmable at 45°C to 60°C to keep media warm up to 24 hours
-
Agar Dissolution & Warming Protocol:Initially at 60°C-100°C for 1-60 minutes, then at 45°C to 60°C for up to 24 hrs.
-
Air Removal Timer:Programmable, 3 to 9 minutes after temperature has reached 97°C
-
Steam Venting: Selectable from:No venting and three other venting rates
-
Delay Start Timer:To program a cycle to automatically start 1 to 99 hours later
-
Temperature for Release of Lid Interlock:Programmable, 60°C to 97°C for greater safety and flexibility
-
Cooling Fan:Switch to turn fan on or off
-
Outside Dimensions (WxDxH):19.7" x 27.2" x 35.0" (455 x 691 x 890) mm
-
Chamber Dimensions:14.3"Diam. x 19.0"H (364 x 482) mm
-
Chamber Volume:50L working, 60.0L actual volume
-
Safety Features:Circuit breaker with GFCI, low-water power cut-off, over-temp power cutoff, over-pressure power cut-off, safety valve, sensor for improper lid closing, temperature and pressure safety interlock.
-
Steam Condenser:15-liter water tank
-
Cooling Fan:Standard fan for faster cooling
-
Drain Water Bottle:2 liters
-
Power Requirements:120V or 220V, 50/60 Hz, one phase
-
Power Consumption:2.0kW, optional 3.0kW at 220V
-
Warranty:1 year
-
Shipping Weight:154 lb (70 kg)
Downloads
-
Autoclaves & Sterilizers HG-Series BrochureDownload
