Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines, with a NIST calibrated data logger included, with antimicrobial handle.

Features

Accucold's Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines, with a powder-coated silver ion handle that helps prevent germ spread.

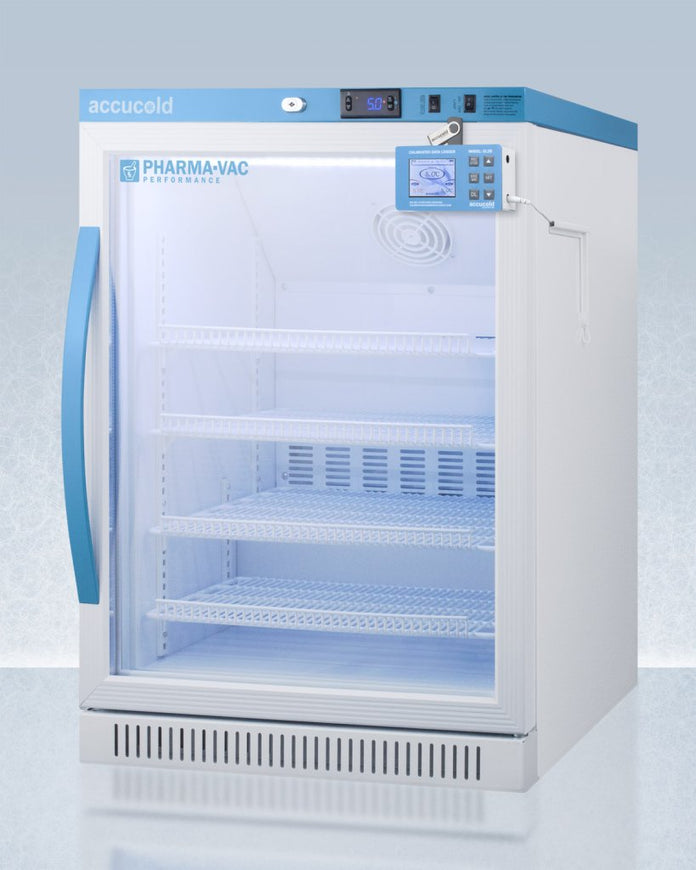

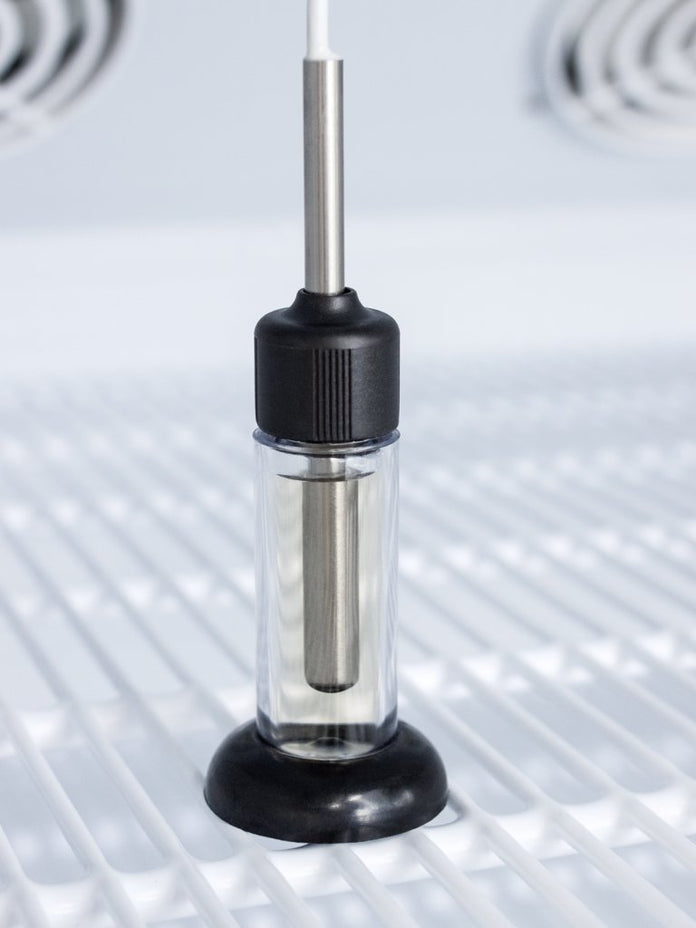

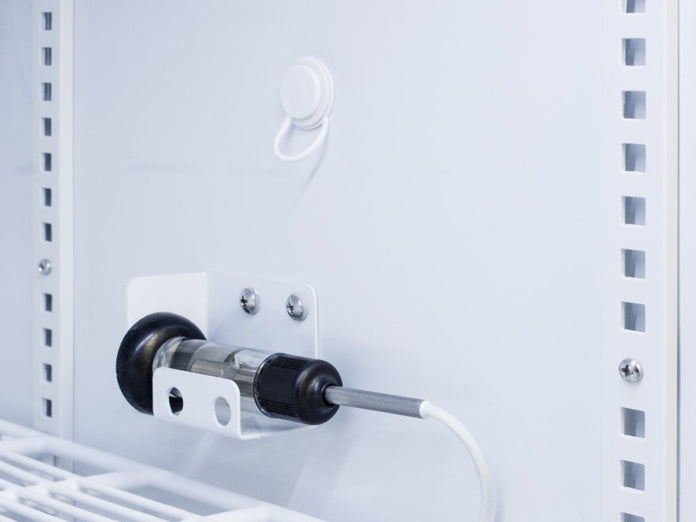

The ARG6PVDL2B is a 6 cu.ft. all-refrigerator sized at 32.5 inches high for use in most ADA compliant applications. The adjustable control range allows you to manage the temperature between +2 to +8°C. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. This refrigerator includes a high/low temperature alarm, as well as a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.



We also include our DL2B digital data logger to be mounted to the door, a feature recommended by the CDC and VFC for vaccine storage. This password-protected DDL is NIST calibrated in our ISO/IEC 17025:2017 accredited laboratory and offers a large LCD display of the current and high/low temperature, recording up to 32,000 data groups to its internal memory or even more on the included 4GB USB flash drive. Data can be viewed through a PC or Mac in Microsoft Excel or any .CSV compatible program. Users can set their own recording intervals starting at increments of 10 seconds to best meet a facility's specific logging needs. We include a 2-year certificate of calibration beginning the date of manufacture. The logger can be re-calibrated in our laboratories after the certificate expires. (For additional information on the DDL, see the DL2BKit listing on our website.)



Inside, the ARG6PVDL2B utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan to ensure excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

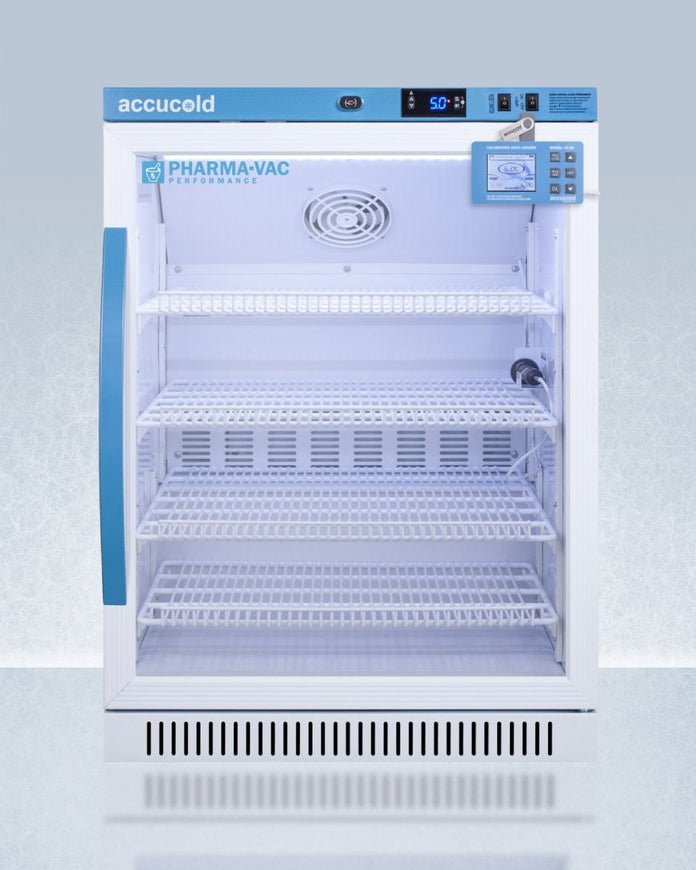

The ARG6PVDL2B comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The double pane tempered glass door provides a full view of the interior. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.



Designed with hydrocarbon refrigerant, the ARG6PVDL2B provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible.



NOTE: The DL2B data logger adds 1 1/2" to the depth of the upper right hand corner of the door (not included in the listed specifications on this page).



NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. Units that end in suffix "456" have been certified to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8°C. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.



Purpose-built design

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines



+/-1ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period



Antimicrobial silver ion-coated handle

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs



Adjustable temperature

Intuitive controls let you adjust the interior temperature between +2 to +8ºC



Digital data logger (DDL) included

Accucold DL2B data logger is NIST calibrated in our ISO/IEC 17025:2017 laboratory, with user-set logging intervals, a large LCD readout of the current and high/low temperature, and virtually unlimited storage through internal memory and a convenient USB drive; for additional information on this logger's features, view the DL2BKit on our webiste



Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

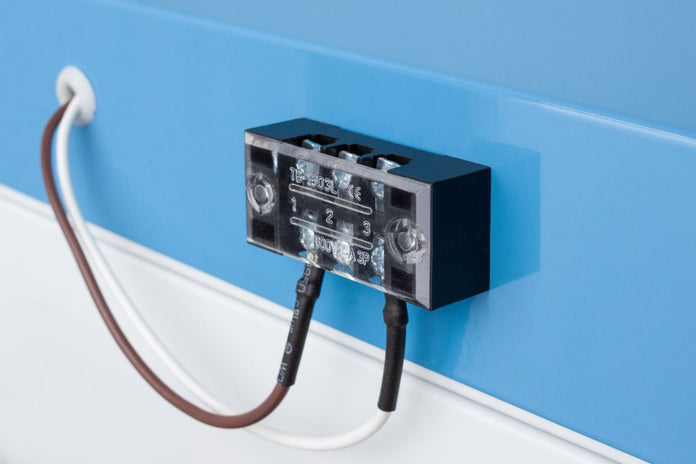

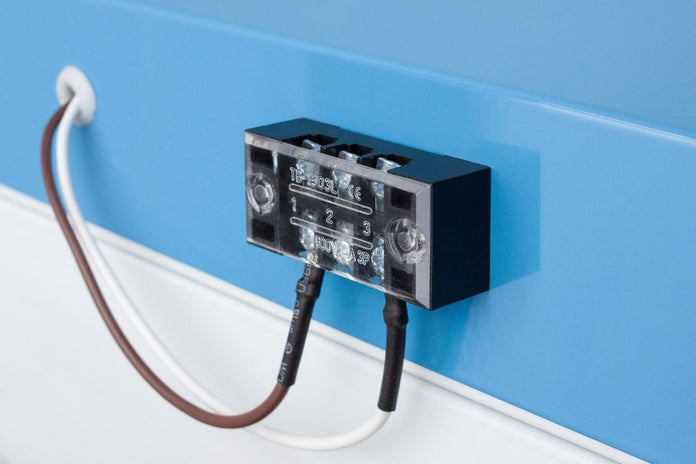

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)



Automatic defrost with adjustable cycle defrost

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

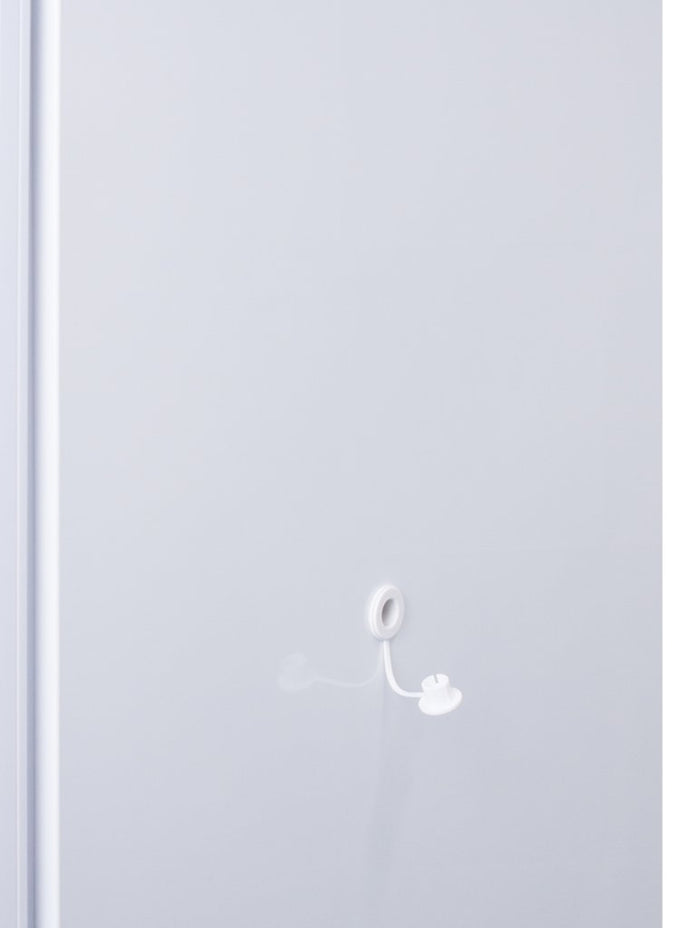

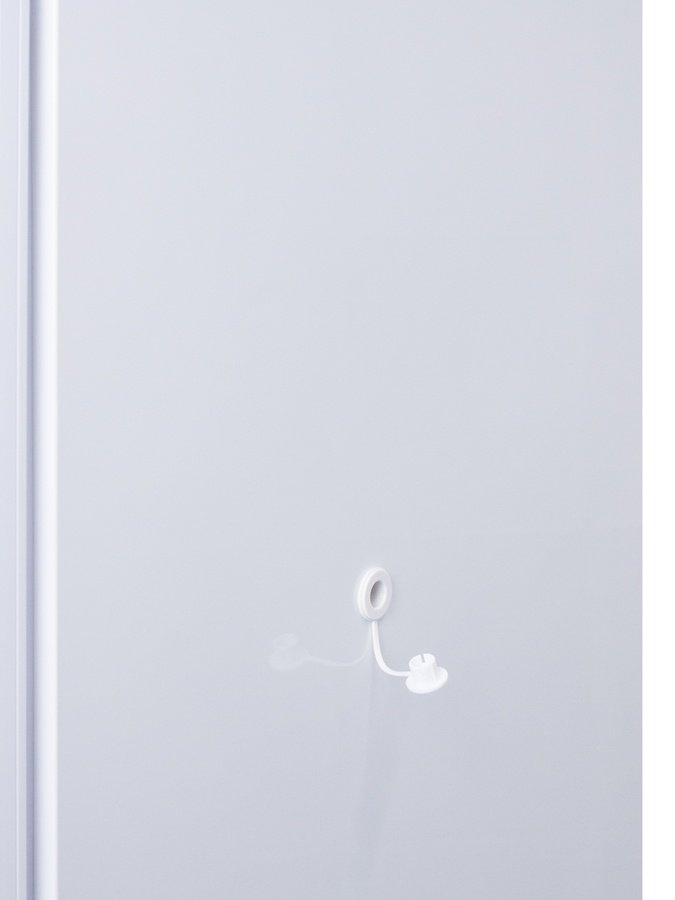

Access port

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment



Open door alarm

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)



Audible power failure alarm

Battery-powered alarm sounds if the power connection is interrupted



Sensor failure alarm

Audible and visual alarm warns if the sensor is disrupted



Password protection

Control panel requires password entry to adjust the parameters beyond the set point

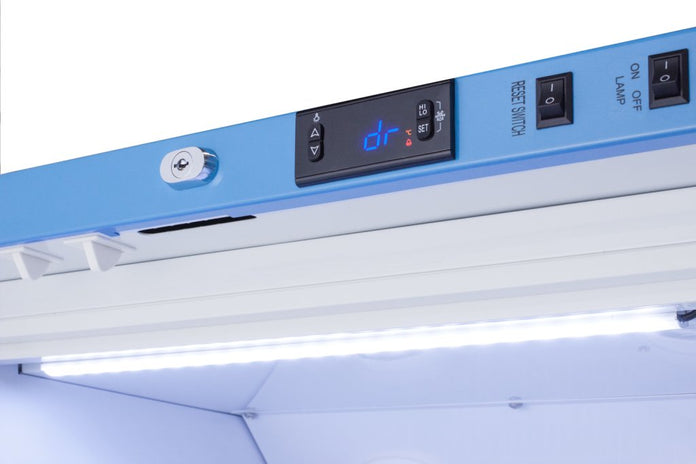

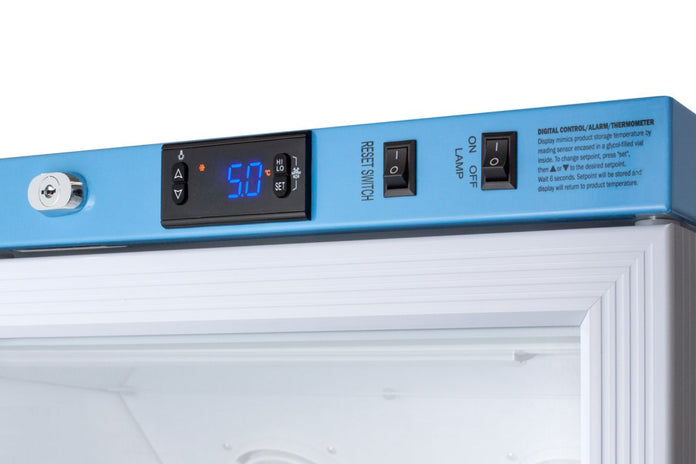

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management



Resettable min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments



Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

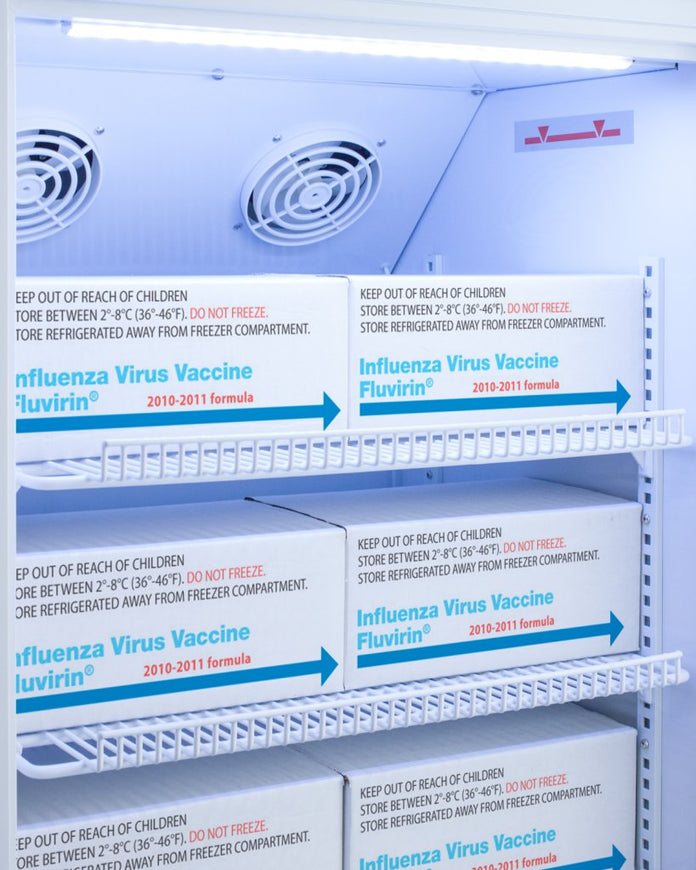

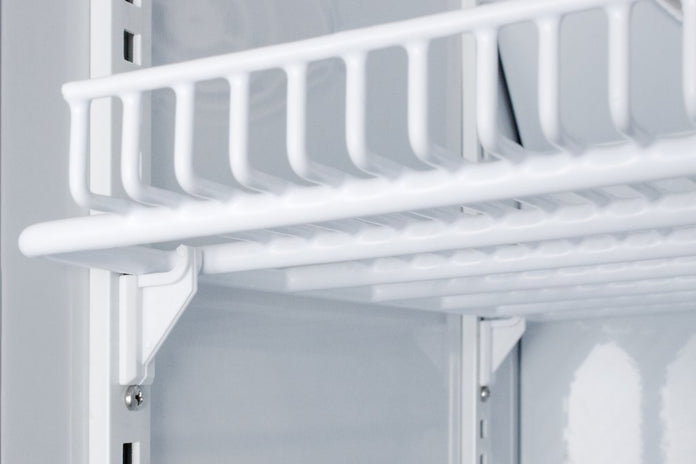

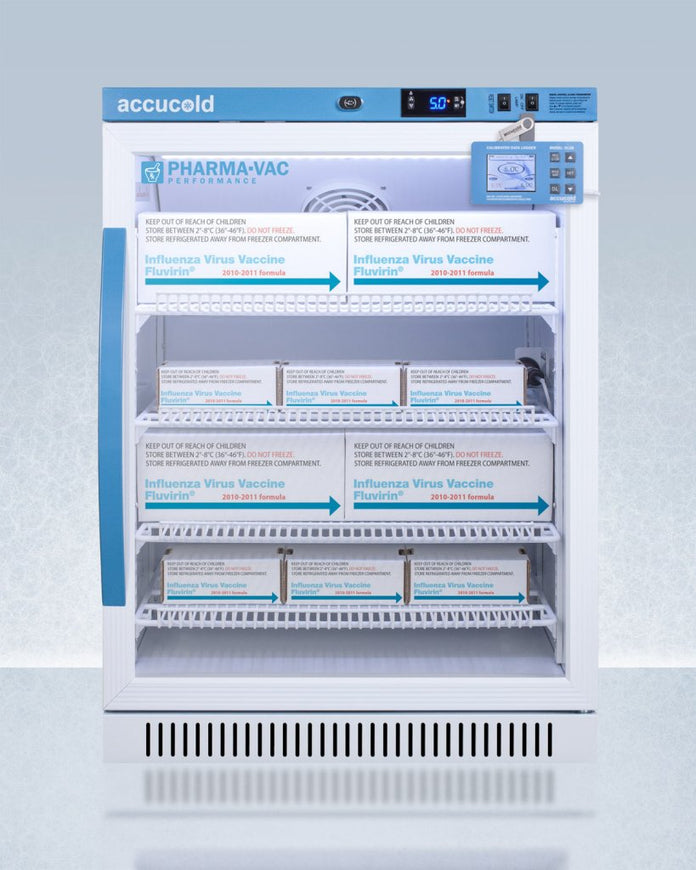

Adjustable plastic-coated wire shelves for improved circulation

Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size



Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety



Durable interior

Walls are constructed from white powder coated metal for added strength and improved temperature retention



Interior light

Energy efficient LED lighting with internal on/off switch



Self-closing door

Added protection in busy settings

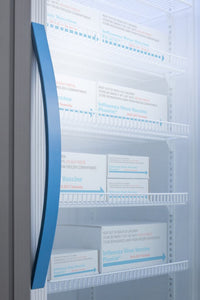

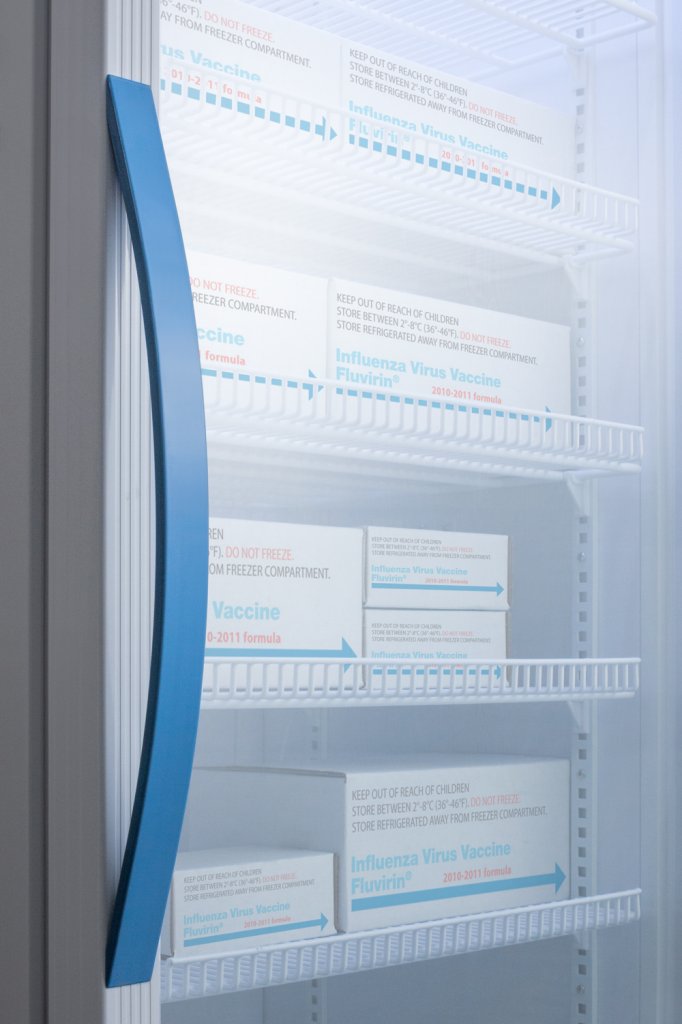

Easy-grip handle

17 1/2" long handle in blue finish for easy accessibility



Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance



Extended warranty

2 years parts and labor/5 years compressor



Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint



Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"



Additional choices

Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information



Versatile design

Compatible with Pyxis®, Omnicell®, and AcuDose RX®



ADA compatible height

Sized at 32.5 inches high for use with most ADA compliant applications



100% CFC free

Environmentally friendly design without ozone-damaging chemicals



CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Watch the video

Specifications

Overview

  • Nominal Height:
    32" (81.28 cm)
  • Nominal Width:
    24" (60.96 cm)
  • Nominal Length:
    25" (63.5 cm)
  • Internal Height:
    24.5" (62.23 cm)
  • Internal Width:
    20" (50.8 cm)
  • Internal Length:
    17" (43.18 cm)
  • Capacity:
    6

Overview

  • Height of Cabinet:
    32.5" (83 cm)
  • Width:
    23.38" (59 cm)
  • Width with Door Open:
    23.88" (61 cm)
  • Depth:
    24.38" (62 cm)
  • Depth with Handle:
    26.13" (66 cm)
  • Depth with Door at 90°:
    46.5" (118 cm)
  • Defrost Type:
    Automatic
  • Door:
    Glass
  • Cabinet:
    White
  • US Electrical Safety:
    ETL
  • Canadian Electrical Safety:
    ETL-C
  • Amps:
    0.75
  • Voltage/Frequency:
    115 V AC/60 Hz
  • Weight:
    115.0 lbs. (52 kg)
  • Parts & Labor Warranty:
    2 Years
  • Compressor Warranty:
    5 Years

Refrigerator

  • Door Swing:
    LHD
  • Reversible:
    Factory Reversible
  • Shelf Type:
    Wire
  • Shelf Qty:
    4
  • Adjustable Shelves:
    Yes
  • Thermostat Type:
    Digital
  • Fan Type:
    Interior
  • Refrigerant Type:
    R600a
  • Refrigerant Amount:
    1.66 oz.
  • Interior Light:
    Yes
  • Temperature Range:
    2 to 8°C
  • Sound Level:
    37.6 dB

Dimensions

  • Compressor Step Height:
    6.5" (17 cm)
  • Compressor Step Width:
    20.0" (51 cm)
  • Compressor Step Depth:
    5.0" (13 cm)
