Specially designed for vaccine storage, with an external high/low temperature readout and 2-8°C operation as recommended by the CDC & VFC.

Features

Accucold's Pharmaceutical Series features refrigeration specially designed to meet current CDC and VFC guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters.

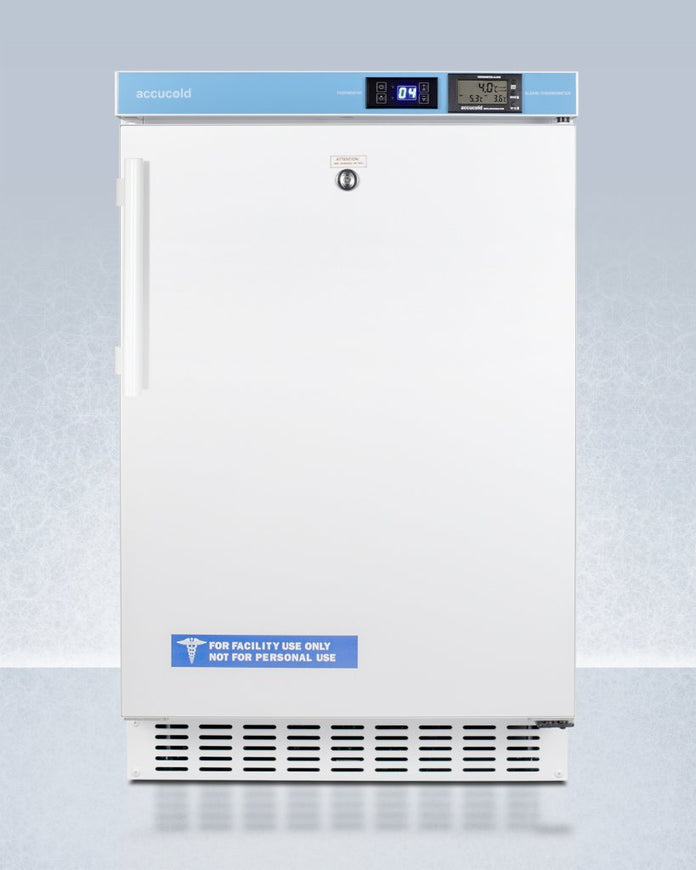

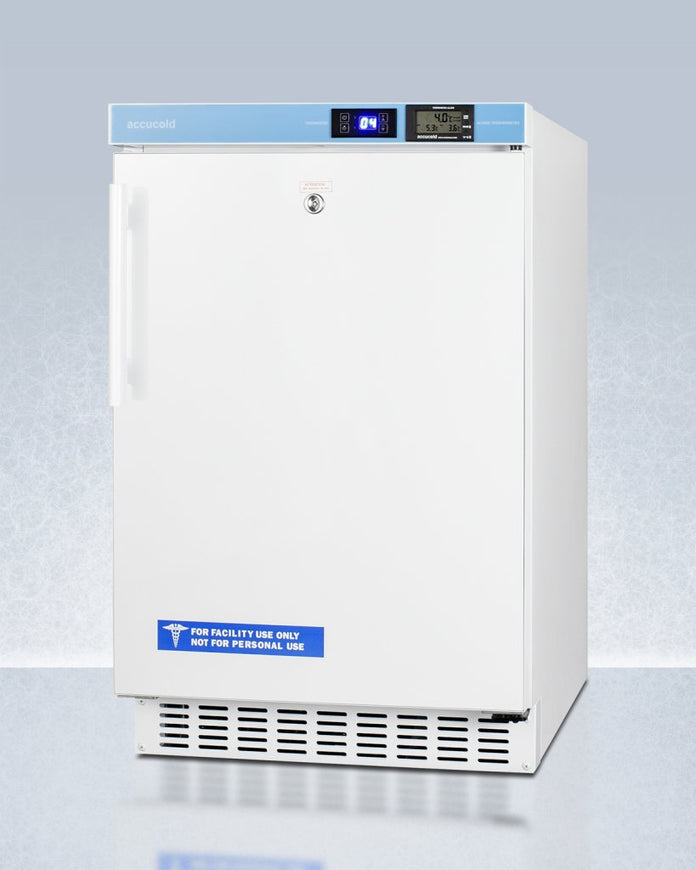

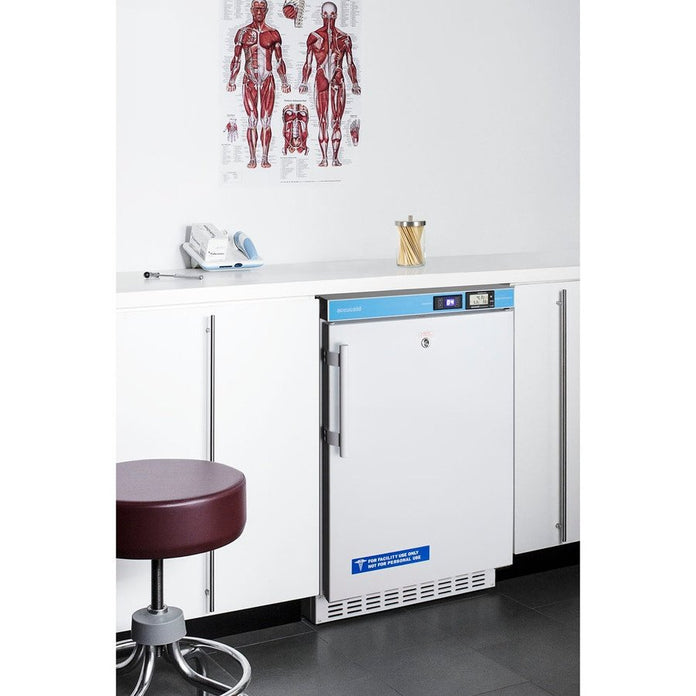

The ACR45L all-refrigerator is sized at just under 32" high, with a front-breathing design for built-in installation under lower ADA compliant counters and fully finished cabinet that also allows freestanding use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. The user-reversible door includes a side-mounted handle for added convenience, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. Four adjustable leveling legs allow you to raise the height for a better fit under standard countertops.

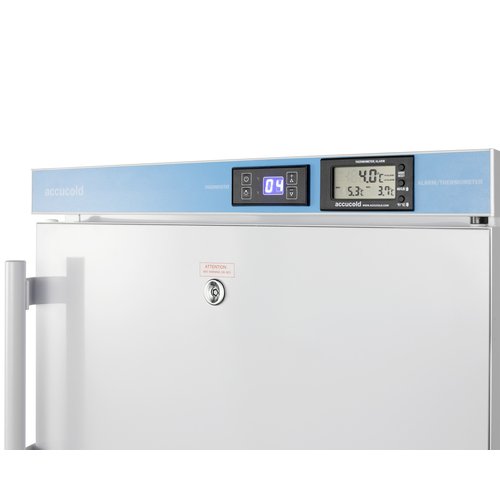

For optimum temperature management, the ACR45L features an external control panel, allowing users to adjust and monitor the temperature without opening the door. Additionally, it is equipped with a thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit (as recommended by the CDC and VFC). The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed. (Note: for this unit with a NIST calibrated thermometer, see the ACR45LCAL.)

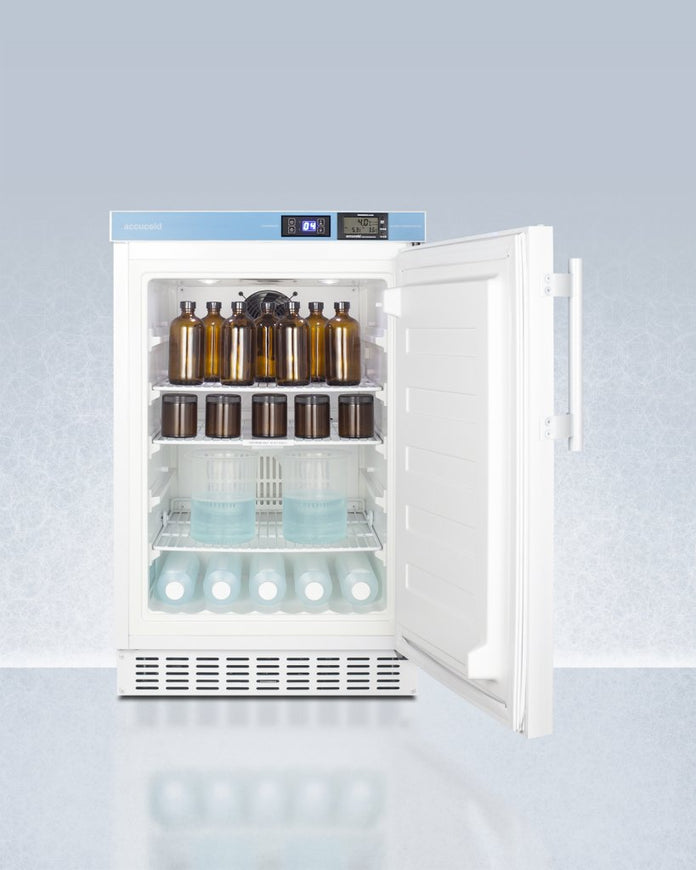

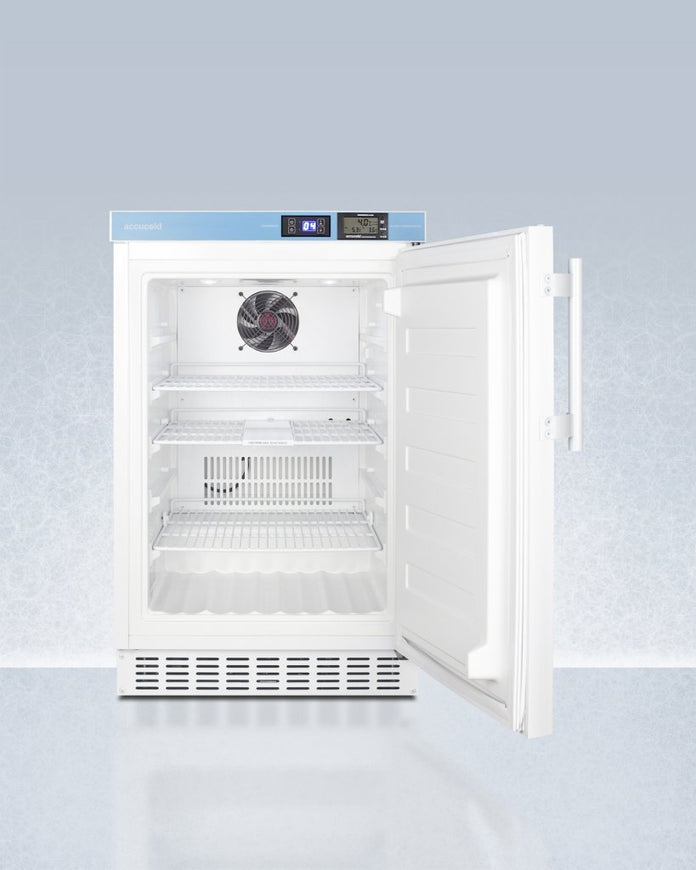

Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view.

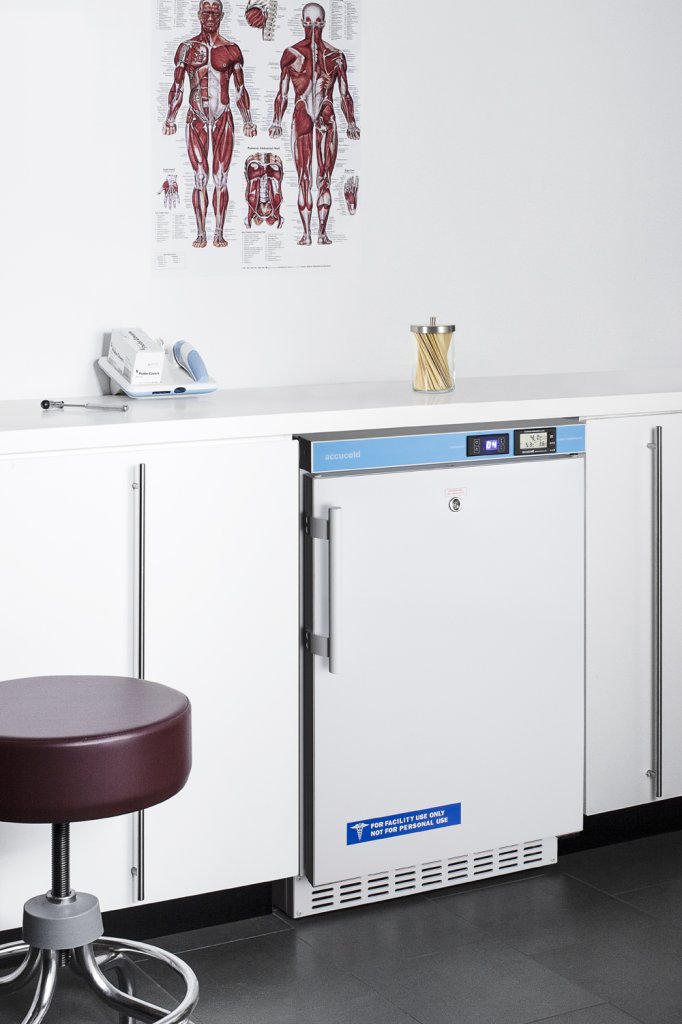

At just under 20" wide, the ACR45L is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments. Browse the Accucold website to explore the full product line.



NOTE: Accucold's Pharmaceutical Series refrigerators have been tested to operate within 2.5°C of the temperature set point and are intended for a wide variety of healthcare storage applications, including vaccines, specimens, pharmaceuticals, and other medical, biological, life science, and industrial materials. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8°C. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. For units with a ±1°C variation, see Accucold's Performance Series.



Vaccine refrigerator

Purpose-built to meet the recommendations of the CDC, VFC and VFA for reliable vaccine storage



ADA compliant

Sized just under 32" high to allow installation under lower ADA compliant counters



Built-in capable

Front-breathing system allows the unit to be installed under cabinets with minimum clearance



Slim 20" width

Full 2.65 cu.ft. capacity inside conveniently slim footprint



External temperature readout

Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button



Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience



High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range



Buffered temperature probe

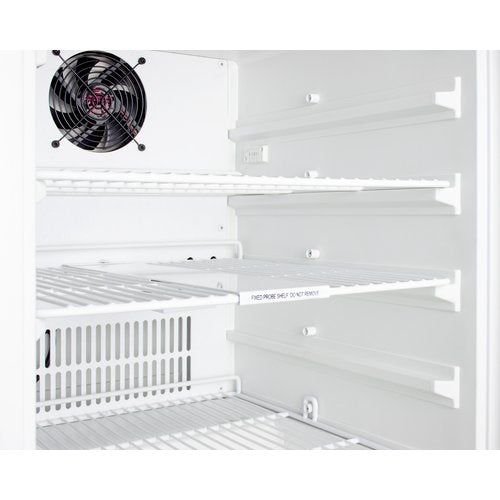

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines



Factory installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)



Frost-free

No-frost operation for minimum user maintenance



Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom



Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas



Adjustable wire shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup



Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials



LED lighting

Attractively illuminates the interior in a gentle white hue for easy viewing

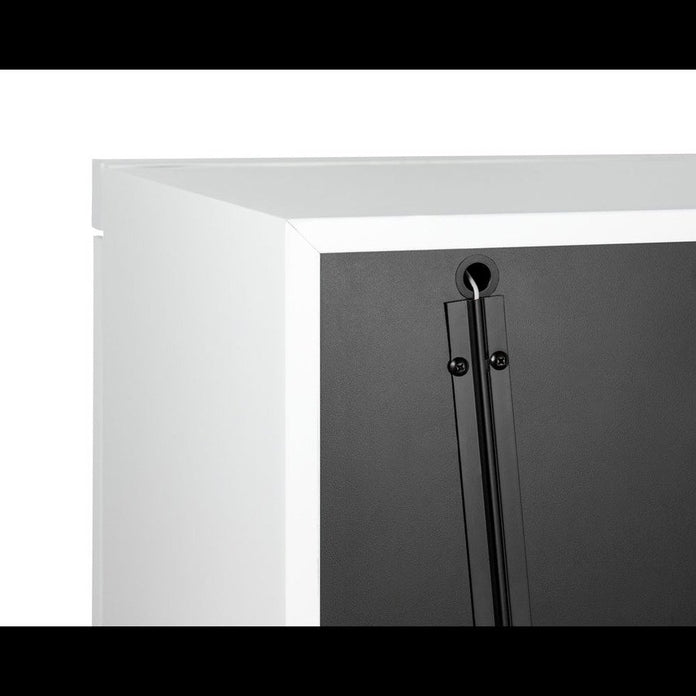

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment



Reversible door

User-reversible door swing makes it easy to adjust to your setting as needed



Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

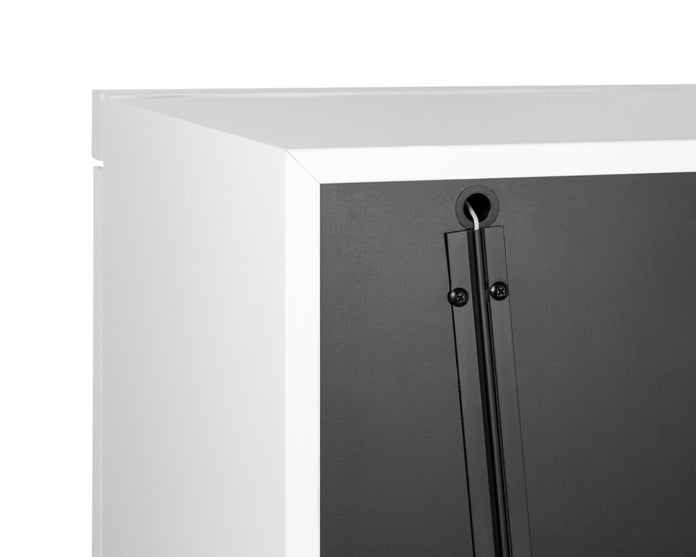

Sealed back

Space-saving convenience with easier cleanability



Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss



Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures



Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance



Handle included

Side-mounted handle for user convenience (not required to operate the unit)



Fully finished white cabinet

Allows the unit to be used freestanding



Matching freezer

Pair with the frost-free ACF33LCAL for a matching set



100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals



CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

  • Nominal Height:
    32" (81.28 cm)
  • Nominal Width:
    20" (50.8 cm)
  • Nominal Length:
    23" (58.42 cm)
  • Internal Height:
    21.25" (53.98 cm)
  • Internal Width:
    15" (38.1 cm)
  • Internal Length:
    16.13" (40.97 cm)
  • Capacity:
    2.65

Overview

  • Height of Cabinet:
    31.5" (80 cm)
  • Width:
    19.5" (50 cm)
  • Depth:
    22.75" (58 cm)
  • Depth with Handle:
    23.63" (60 cm)
  • Depth with Door at 90°:
    41.0" (104 cm)
  • Defrost Type:
    Frost-Free
  • Door:
    White
  • Cabinet:
    White
  • US Electrical Safety:
    ETL
  • Canadian Electrical Safety:
    ETL-C
  • Amps:
    1.0
  • Voltage/Frequency:
    115 V AC/60 Hz
  • Weight:
    79.0 lbs. (36 kg)
  • Parts & Labor Warranty:
    1 Year
  • Compressor Warranty:
    5 Years

Refrigerator

  • Door Swing:
    LHD
  • Reversible:
    Yes
  • Shelf Type:
    Wire
  • Shelf Qty:
    3
  • Adjustable Shelves:
    Yes
  • Thermostat Type:
    Digital
  • Fan Type:
    Interior and Exterior
  • Refrigerant Type:
    R600a
  • Refrigerant Amount:
    0.99 oz.
  • High Side PSI:
    270.0
  • Low Side PSI:
    105.0
  • Level Legs Qty:
    4
  • Interior Light:
    Yes
  • Temperature Range:
    2° to 8°C

Dimensions

  • Compressor Step Height:
    3.5" (9 cm)
  • Compressor Step Width:
    15.0" (38 cm)
  • Compressor Step Depth:
    4.75" (12 cm)
