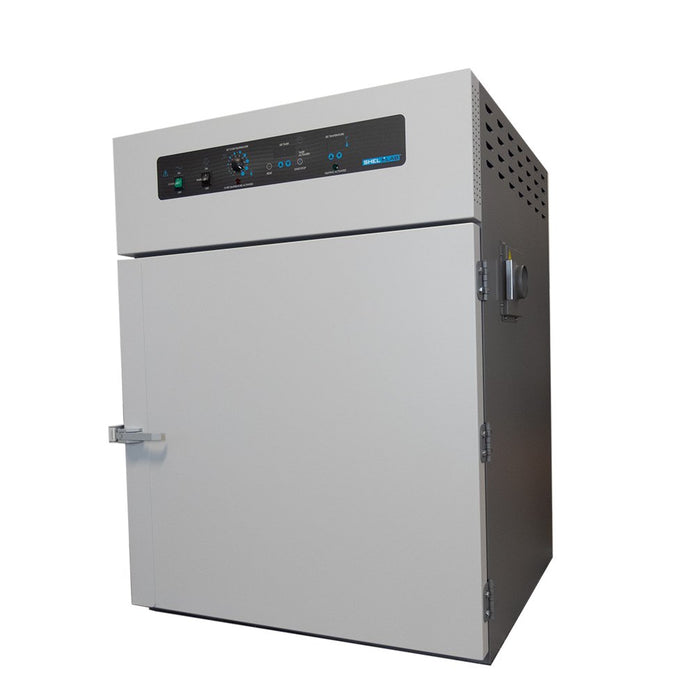

Sheldon - SMO14-2 - Forced Air Ovens, Forced Air Oven, 13.8 Cu.ft, 230V

Sheldon - SMO14-2 - Forced Air Ovens, Forced Air Oven, 13.8 Cu.ft, 230V
Sheldon - SMO14-2 - Forced Air Ovens, Forced Air Oven, 13.8 Cu.ft, 230V
Sheldon - SMO14-2 - Forced Air Ovens, Forced Air Oven, 13.8 Cu.ft, 230V
Sheldon - SMO14-2 - Forced Air Ovens, Forced Air Oven, 13.8 Cu.ft, 230V
Sheldon - SMO14-2 - Forced Air Ovens, Forced Air Oven, 13.8 Cu.ft, 230V
Sheldon - SMO14-2 - Forced Air Ovens, Forced Air Oven, 13.8 Cu.ft, 230V

Sheldon - SMO14-2 - Forced Air Ovens, Forced Air Oven, 13.8 Cu.ft, 230V

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
SHEL LAB forced air ovens have a turbo blower-assisted airflow design and heavy-duty motors that offers excellent temperature uniformity and fast temperature recovery.

Features

The SHEL LAB SMO14-2 features 14 cubic feet of economical oven space. The independent overtemperature safety feature is user adjustable and provides added safety. The forced, blower-assisted airflow design offers excellent temperature uniformity and fast recovery. A turbo blower and heavy-duty motor combine to direct air over the shelves and samples for even, constant drying, curing, and baking.


The large capacity SMO ovens are perfect for high volume sample and drying applications, including production processes. These units are especially ideal for glassware drying.


These SHEL LAB Ovens Feature


  • Three-inch Adjustable Exhaust Port
  • Stainless Steel Shelves
  • Independent Overtemperature Safety
  • High-Temperature Silicone Door Seal
  • Added docking collars to intake and exhaust ports to allow ducting to be attached for venting exhaust out of the workspace
  • Shelf standards moved to the sides of the unit for easier shelf installation
  • No Exposed Heating
  • Wrap Around Insulation
  • Durable Powder Coat Paint Exterior Finish
  • Digital Timer
  • 24 Month Limited Warranty

Specifications

Overview

  • Nominal Height:
    48" (121.92 cm)
  • Nominal Width:
    39.1" (99.31 cm)
  • Nominal Length:
    34" (86.36 cm)
  • Internal Height:
    31" (78.74 cm)
  • Internal Width:
    30.8" (78.23 cm)
  • Internal Length:
    24.8" (62.99 cm)
  • Capacity:
    14.6

Specifications

  • Shelf Dimensions (W x D):
    30.1 x 24 (765 mm x 610 mm)
  • Unit Weight:
    280.0 lbs (127.3 kg)
  • Interior Metal:
    430 Series Stainless Steel
  • Exterior Metal:
    Painted Cold Roll Steel
  • Operating Temperature Range:
    Amb +15°C - 260°C
  • Temperature Uniformity - Midrange:
    3.0°C
  • Temperature Stability - Midrange:
    0.4°C
  • Controller Type:
    Digital
  • Display Resolution:
    1°C
  • Power Voltage, Frequency and Current:
    230 VAC, 50/60 Hz, 12.0 Amps
  • Safety Certifications:
    UL 61010-1, EN 61010-1, CSA 61010-1, CE
  • Interior Construction:
    430 series stainless steel
  • Exterior Construction:
    Painted Cold Roll Steel
  • Shelves (See Accessories):
    3 standard, 8 total
  • Maximum Weight Per Shelf:
    75 lb/34 kg
  • Permitted Total Load:
    225 lb/102 kg

Voltage Specific

  • Electrical, 50/60Hz, AC, 1Ø - Voltage:
    230V
  • Temperature Range 15°C above ambient to 260°C - Temperature Uniformity At 80°C:
    1.5°C
  • Temperature Range 15°C above ambient to 260°C - Temperature Uniformity At 150°C:
    3.0°C
  • Temperature Range 15°C above ambient to 260°C - Temperature Uniformity At 260°C:
    7.0°C
  • Temperature Range 15°C above ambient to 260°C - Ventilation - Air Changes Per Hr at Max:
    175
  • Temperature Range 15°C above ambient to 260°C - Ventilation - Max CFM:
    42

Site Preparation and Installation Guides - SMO Oven Options and Accessories

  • Door Swing Clearance (Nominal):
    37.9" (963 mm)
  • Wall Clearance, Sides:
    6" (152 mm)
  • Wall Clearance, Rear:
    12" (305 mm)
  • Wall Clearance, Roof:
    24" (610mm)
  • Net Weight Empty (with Standard Shelves):
    280 lb (127.3 kg)
  • Shipping Weight:
    361 lb (164 kg)
  • Caster Platform:
    9000596
  • Shelf with Clips:
    9751244
  • Sliding Shelf Option (Includes 1 Shelf, 2 Slides):
    9751368
