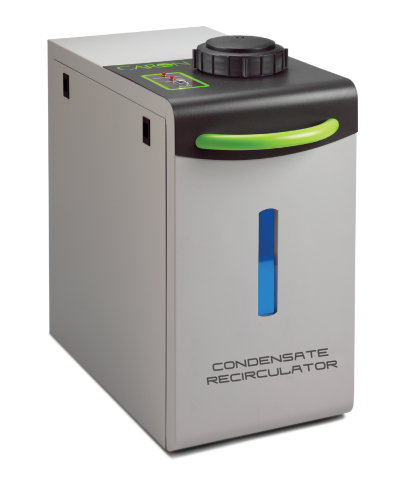

Caron - CRSY102 - Condensate Recirculating System

Product Range
SKU | Name |
---|---|
CRSY102-4 | Caron - CRSY102-4 - Condensate Recirculating System |
Features
Not every lab enjoys easy access to equipment-grade water or nearby floor drains for their environmental chambers. The CRSY stands as the compact and easily installable water feed option you’ve been searching for. This innovative system not only filters stored tap water and unit drain water, but also allows you to strategically position humidified chambers without the need for costly whole-lab water systems, bottled purified water, or retrofitted floor drains.
Key Features
- 7 gal. (26.5L) reservoir
- Organics/DI filtration system
- Transforms both standard tap water and environmental chamber condensate into lab-quality 1 megOhm water.
- Multiple in-line filters to reduce waterborne contamination
- Compact and easy to install
- Cost-effective alternative to large-scale water systems
- Perfectly suited for areas without floor drains
Purifying Contaminated Water
- Generates Type II equipment-grade water from any quality tap water.
- Utilizes dual DI and carbon block/sediment filters to eliminate scale & organics.
- Sensor-controlled to prevent expensive over or under-processing.
- Decreases water consumption by filtering and recirculating the chamber condensation.
Space Efficient Performance
- Slim design provides feed water for up to 2 chambers.
- Fits seamlessly into current lab space without the need for special enclosures or closets.
- Shields humidity control chambers from damage caused by scaling deposits.
- 7-gallon (28-liter) storage tank extends time between refills.
Maintenance Simplified
- Effortless rolling for full accessibility during maintenance.
- Convenient side access panels ensure quick filter replacement.
- Featuring an antimicrobial element, with an optional UV light for water disinfection.
- Visual low water alarm to alert you immediately.
- Back-lit water reservoir ensures easy at-a-glance monitoring of water levels.
Elevate your laboratory operations with CRSY102 – the key to savings, sustainability, and streamlined performance.
Specifications
Overview
-
Nominal Height:26.6" (67.56 cm)
-
Nominal Width:14" (35.56 cm)
-
Nominal Length:26.5" (67.31 cm)
General Specifications
-
Input Water Quality:Potable tap water
-
Output Water Quality:100-125 kΩ-cm
-
Exterior Material:Durable powder coated metal
-
Water Reservoir:7 gallons (26.5 liters)
-
Alarms:Visual low water & replace filter indicators
-
Casters:4, non-locking
-
Weight - Shipping:125 lbs. (57 kg)
-
Weight - Empty:84 lbs. (34 kg)
Electrical
-
Voltage:115V
-
Frequency:60Hz
-
Current:5A (NEMA 5-15P Plug)
