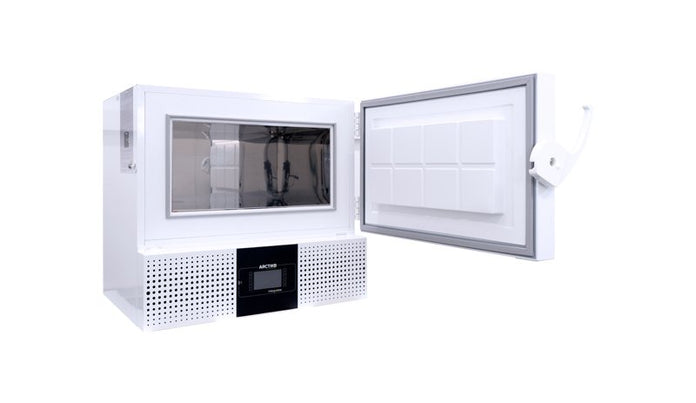

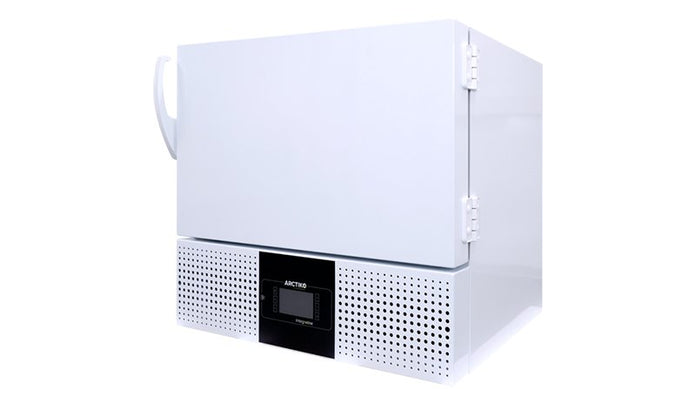

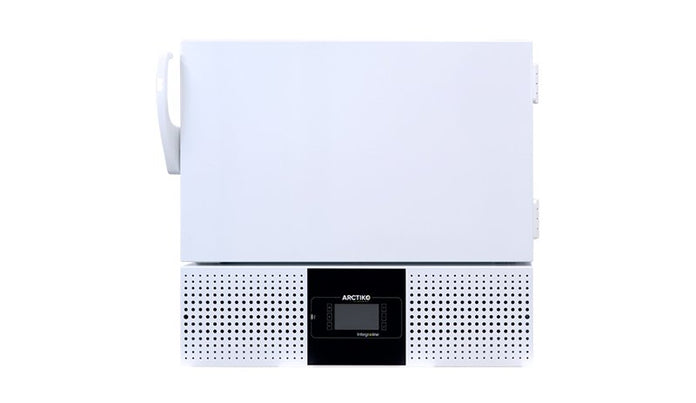

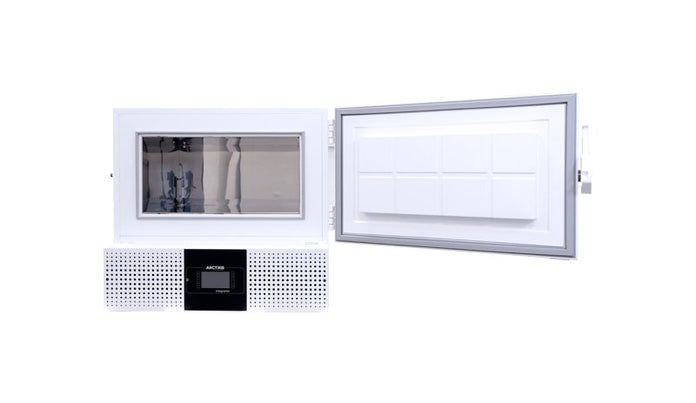

Arctiko - 1000003-01 - Small Benchtop Freezer ULUF P90 MV

Features
This compact freezer is designed for convenience, offering easy access to samples and flexible placement options in your workplace. Whether placed under a counter or on a benchtop, it's ideal for labs or clinical environments with limited room. ARCTIKO's innovative single compressor technology ensures excellent temperature uniformity and outstanding cooling performance, allowing you to focus on your research without worrying about your samples.
- Outstanding cooling performance with the true and unique single cooling system and natural refrigerant with ultra-low GWP (Global Warming Potential)
- Compact space-saving design makes this ULT the perfect storage solution for laboratories with limited space
- Single compressor technology with a simple structure ensures easy maintenance, lower heat dissipation, low energy consumption, and noise reduction for a pleasant work environment
- Direct cooling for optimized temperature stability and uniformity, even with multiple door openings
- Low energy consumption made possible with ECO mode and ultra-efficient vacuum insulated panels
- Self-diagnostic function to guarantee that your alarm system is always working correctly
Specifications
Overview
-
Nominal Height:32.91" (83.59 cm)
-
Nominal Width:36.89" (93.7 cm)
-
Nominal Length:30.63" (77.8 cm)
-
Internal Height:12.1" (30.73 cm)
-
Internal Width:25.08" (63.7 cm)
-
Internal Length:17.44" (44.3 cm)
-
Capacity:3.1
Main Specifications
-
Temperature Range:-25°C to -86°C
-
Max. Ambient Temperature:32°C
-
Capacity (L):88
-
Weight (kg):102
-
Insulation (mm):120
-
Cooling Technology:Single system / Static inverter / MV
-

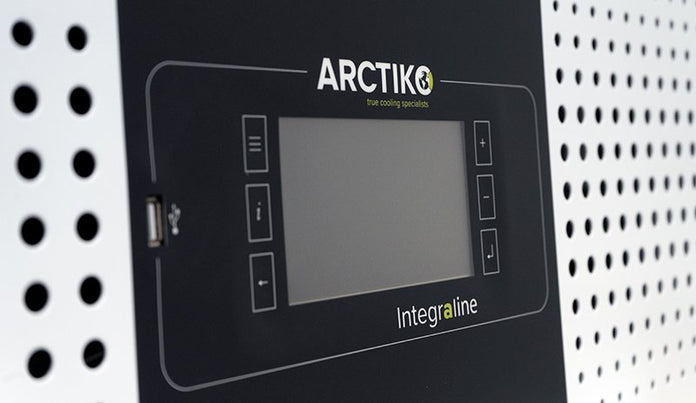

Controller Model / Probe Type:V500 / Pt100
-
Power Supply Voltage (V):110 - 230
-
Frequency (Hz):50 / 60
-
Power Consumption (kWh/24h):4.67
-
AMP (A):3.0 (110V) / 1.5A (230V)
-
Power (Watt):280
-
Horse Power (HP):1
Refrigerant & Cabinet
-
Number of Compressors:1
-
Refrigerant:Nature R2
-
Interior Cabinet Material:Stainless steel
-
Exterior Cabinet Material:Painted steel
-
Colour (Exterior Cabinet):White
-
Foam Agent:Polyurethane
-
VIP Vacuum Insulated Panels:Yes
Shipping
-
Shipping Weight (kg):138
-
Shipping Dimensions WxDxH (cm):83 x 103 x 103
-
Shipping Volume (m³):0.88
Drawings
-
Wiring Drawing ULUF P90 MVVisit Link
-
Dimension Drawing ULUF P90 MVVisit Link
Useful Links
-
Product Datasheet ULUF P90 MVVisit Link
-
Safety Datasheet NatureRVisit Link
-
CE Certificate IntegralineVisit Link
-
ISO 9001Visit Link
-
Operating Instructions Integraline ULUF P10 P50 P90Visit Link
