When outfitting a cleanroom, pharmacy, or research laboratory, protecting your sensitive materials from airborne contamination is paramount. The primary defense against particulate contamination is a laminar air flow hood. By passing air through high-efficiency particulate air (HEPA) or ultra-low penetration air (ULPA) filters, these specialized clean benches create a highly controlled, particulate-free workspace.
However, not all laminar hoods are built identically. The most critical decision facility managers and researchers face when selecting equipment is choosing between a horizontal laminar flow hood and a vertical laminar flow hood.
Understanding the mechanics, benefits, and specific applications of each design is crucial to maintaining sample integrity. In this guide, Laboratory Equipment Company (LEC) breaks down the difference between vertical and horizontal laminar flow hood designs to help you make the best equipment investment for your facility.
What is a Laminar Flow Hood?
Before comparing horizontal and vertical models, it is helpful to define what a laminar flow hood actually does. Often referred to as a clean bench, a HEPA laminar flow hood is an enclosed workstation designed to prevent contamination of semiconductor wafers, biological samples, or any particle-sensitive materials.
Air is drawn through a filtration system and exhausted across the work surface in a smooth, unidirectional (laminar) stream. This steady, non-turbulent airflow sweeps particulates away from the work area, ensuring the space meets ISO 5 hood (Class 100) cleanliness standards. Whether utilized as a sterile compounding hood in a pharmacy or a laminar flow hood cell culture workspace, the core objective is identical: product protection.
Laminar Flow vs. Fume Hood: Understanding the Difference
A common point of confusion in laboratory planning is the laminar flow vs. fume hood debate. It is critical to understand that they serve entirely different purposes.
A laminar flow hood is designed exclusively to protect the product on the work surface from room contamination. The air from the hood blows directly toward the user, meaning it offers zero protection to the operator. You should never use a laminar air flow hood when handling hazardous chemicals, toxic fumes, or infectious biological agents.
A fume hood, conversely, is designed to protect the user. It pulls room air into the enclosure and exhausts toxic chemical vapors safely outside the building. If you need to protect the user and the product from biological hazards, you need a Biological Safety Cabinet (BSC), not a standard clean bench.
Horizontal Laminar Flow Hoods Explained

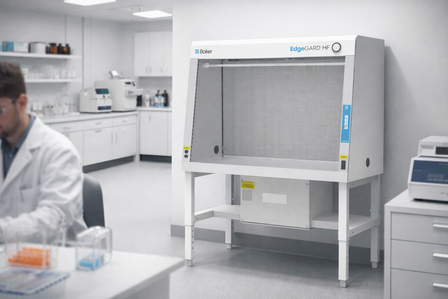

In a horizontal flow cabinet, the HEPA filter is located on the back wall of the enclosure. The system pulls room air through a pre-filter (usually located on the top or bottom of the unit), pushes it through the rear HEPA filter, and directs the horizontal laminar air flow straight across the work surface toward the operator.
Benefits of Horizontal Airflow
The primary advantage of a horizontal hood is the elimination of turbulent air caused by the work surface itself. Because the air flows parallel to the benchtop, it provides an incredibly consistent, turbulence-free sweep. This makes horizontal hoods highly effective for tasks where hands or instruments must be placed inside the workspace. The air simply flows around the operator's hands and continues out of the cabinet, minimizing the risk of "wake" contamination behind objects.
Ideal Applications
- Mycology & Agar Work: A horizontal laminar flow hood is heavily favored in mycology for pouring agar plates and transferring cultures, as the airflow prevents spores from settling on the work surface.
- Media Preparation: Excellent for preparing non-hazardous sterile media.
- Electronics Assembly: Ideal for inspecting or assembling sensitive microelectronics that require a strict particulate-free zone.
Drawbacks to Consider
Because the air blows directly at the operator, any dust or particulates generated by the samples are blown into the user's face. Large equipment placed on the benchtop can also block the horizontal flow, creating dead zones behind the equipment where contaminants can settle.
Vertical Laminar Flow Hoods Explained
In a vertical flow hood, the HEPA filter is positioned in the ceiling of the workspace. The system draws air in (typically through the top of the cabinet), forces it downward through the HEPA filter, and bathes the work surface in a vertical laminar air flow before the air escapes through the open front or perforated bottom.
Benefits of Vertical Airflow
Vertical laminar airflow hoods are generally considered more versatile and take up less depth in a laboratory since the filter is mounted above rather than behind the unit. A vertical laminar hood closely mimics the design of a full-scale cleanroom. Furthermore, because the air blows straight down, the operator is not hit with a direct blast of air, which is generally more comfortable and prevents fumes (from non-hazardous compounds like ethanol) from blowing directly into the user's face.
Large pieces of equipment, such as microscopes or compounding scales, do not block the airflow in a vertical hood the way they do in a horizontal hood.
Ideal Applications
- Sterile Compounding: Frequently used as a sterile compounding hood in pharmaceutical settings (for non-hazardous IV preparations).
- Microbiology & Cell Culture: A popular choice for a laminar flow hood cell culture setup (provided the cultures are strictly non-hazardous).
- Space-Constrained Labs: Ideal for labs that need to maximize floor space.
Drawbacks to Consider
When an operator reaches into a vertical hood, their hands and arms disrupt the downward airflow. This can create turbulent "wash" zones beneath their hands, potentially driving contaminants down onto the product. Operators must practice excellent aseptic technique to mitigate this risk.
Horizontal vs. Vertical Laminar Flow Hood: Which is Right for You?
When evaluating a horizontal vs. vertical laminar flow hood for your laboratory, the decision ultimately comes down to the size of your equipment, the specific procedures being performed, and the layout of your facility.
| Feature | Horizontal Laminar Flow Hood | Vertical Laminar Flow Hood |
|---|---|---|
| Airflow Direction | Back to front (parallel to work surface) | Top to bottom (perpendicular to work surface) |
| Best for Large Equipment? | No (blocks airflow, creating dead zones) | Yes (air flows around equipment from above) |
| Operator Comfort | Lower (air blows directly into face) | Higher (air blows downward) |
| Hand Obstruction Risk | Low (air flows around hands efficiently) | Higher (hands block downward airflow) |
| Space Requirements | Requires more depth clearance | Requires more height clearance |
Expert Guidance for Your Next Cleanroom Investment
Whether you require a horizontal flow hood for delicate electronics assembly or a vertical flow hood for sterile compounding, choosing the correct ISO 5 environment is essential for your operational success.
Laboratory Equipment Company (LEC) offers a comprehensive portfolio of clean air solutions designed to meet the most rigorous industry standards. If you are unsure which hood laminar design is best suited for your specific workflows, our experts are here to help. Contact LEC today for a consultation or to request a quote on our industry-leading laminar flow workstations.
